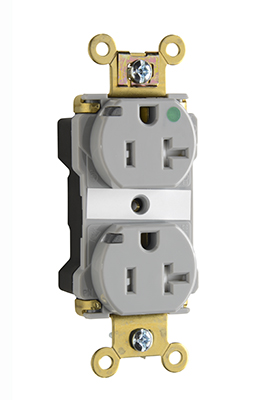

P&S PTTR8300PI 20A 125V PLUGTAIL TR

Manufacturer: Legrand / Pass & Seymour | Catalog # PTTR8300PI | North Coast Part # 1268303
$46.56/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 11 to 17 days
Specification Sheet
Built for the harshest medical environments, P&S power indicating receptacles feature two industry-exclusive green LEDs that offer clear visual assurance of power indication at the receptacleeven with critical equipment plugged into the device. The LEDs operate independently from one another to accommodate split-circuit wiring installations. Tamper-resistant protection comes standard with each receptacle to further enhance safety. For detailed PlugTail® information, visit our PlugTail® Headquarters.

Technical Information

Amperage
20 Amp
Applications
Hospital Grade
Capacity
Duplex
Dielectric Strength
Withstands 2000V minimum
Duty Rating
Extra Heavy Duty
Grade
Hospital
Material
Thermoplastic
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3.0
Size
.866" (D) x 1.625" (W) x 3.281" (H)
TC Connection
PlugTail
Temperature Rating
Maximum continuous +60C, minimum -40 without impact
Termination Type
PlugTail
Type
Receptacles
Voltage
125 Volt
Wire Size
12 AWG

Manufacturer Information

Family Brand Name
Legrand
Sub Brand
Pass & Seymour

General Product Info

Color
Brown
GTiN
00785007041422
Product Series
PlugTail
Product UPC
78500704142

Dimensions

Depth
0.866 Inch
Height
3.281 Inch
Width
1.625 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Certifications
  • Federal Spec Listed
  • cULus Listed
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Crimped and welded contacts.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Plated steel wrap strap design for maximum durability and corrosion resistance.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Large brass contacts snugly terminate on device blade terminals.
  • Auto-ground clip assures positive ground.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
