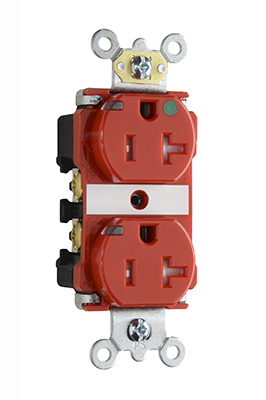

P&S TR8200HPIRED 15A 125V IND GRD T

Manufacturer: Legrand / Pass & Seymour | Catalog # TR8200HPIRED | North Coast Part # 1268311

$38.02/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 11 to 17 days
Built for the harshest medical environments, P&S power indicating receptacles feature two industry-exclusive green LEDs that offer clear visual assurance of power indication at the receptacleeven with critical equipment plugged into the device. The LEDs operate independently from one another to accommodate split-circuit wiring installations. Tamper-resistant protection comes standard with each receptacle to further enhance safety.

Technical Information

Amperage
15 Amp
Applications
Hospital Grade
Capacity
Duplex
Dielectric Strength
Withstands 2000V minimum
Duty Rating
Heavy Duty
Grade
Hospital
Material
Thermoplastic
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3.0
Size
.9" (D) x 1.625" (W) x 3.281" (H)
TC Connection
Side & Back Wired
Temperature Rating
Maximum continuous +60C, minimum -40 without impact
Termination Type
Back & Side Wire
Type
Receptacles
Voltage
125 Volt
Wire Size
14-10 AWG

Manufacturer Information

Family Brand Name
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

Color
Red
GTiN
00785007041262
Product UPC
78500704126

Dimensions

Depth
0.9 Inch
Height
3.281 Inch
Width
1.625 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
  • One-piece, nickel-plated: brass, triple-wipe power contacts for lasting retention.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Auto-ground clip assures positive ground.
  • Exclusive patented feature, circuit label on face allows permanent circuit identification.
  • Extra heavy-duty galavanized steel, one-piece mounting strap with integral ground.
  • Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.
  • External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection.
  • Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
  • Thermoplastic dual mechanism shutter system to help prevent insertion of foreign objects.
  • Two drive screws anchor strap to back body and face.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • For covering patents, see www.legrand.us/patents.
  • Impact-resistant nylon face and back body.
Certifications
  • cULus Listed
  • Federal Spec Listed
