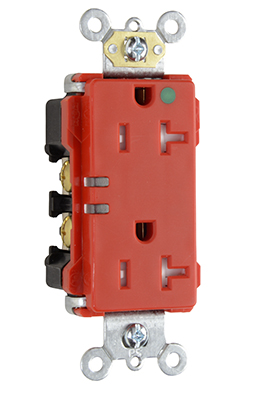

P&S TR26362HGPIRED 20A 125V DECO TR

Manufacturer: Legrand / Pass & Seymour | Catalog # TR26362HGPIRED | North Coast Part # 1268347

$44.65/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 11 to 17 days
Built for the harshest medical environments, P&S power indicating receptacles feature two industry-exclusive green LEDs that offer clear visual assurance of power indication at the receptacleeven with critical equipment plugged into the device. The LEDs operate independently from one another to accommodate split-circuit wiring installations. Tamper-resistant protection comes standard with each receptacle to further enhance safety.

Technical Information

Amperage
20 Amp
Applications
Hospital Grade
Capacity
Duplex
Dielectric Strength
Withstands 2000V minimum
Duty Rating
Extra Heavy Duty
Grade
Hospital
Material
Thermoplastic
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3.0
Size
.90" (D) x 1.625" (W) x 3.281" (H)
Style
Decorator
TC Connection
Side & Back Wired
Temperature Rating
Maximum continuous +60C, minimum -40 without impact
Termination Type
Back & Side Wire
Type
Receptacles
Voltage
125 Volt
Wire Size
14-10 AWG

Manufacturer Information

Family Brand Name
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

Color
Red
GTiN
00785007041415
Product UPC
78500704141

Dimensions

Depth
0.9 Inch
Height
3.281 Inch
Width
1.625 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
  • For covering patents, see www.legrand.us/patents.
  • Auto-ground clip assures positive ground.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Internal screw-pressure-plate back and side wire capability.
  • Dual mechanical shutter system to help prevent insertion of foreign objects.
  • Two back wire holes for additional wiring flexibility.
  • Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly.
  • .032 inch thick brass triple-wipe power contacts.
  • Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.
  • Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
  • Backed-out tri-drive brass terminal screws for faster installation.
Certifications
  • cULus Listed
  • Federal Spec Listed
