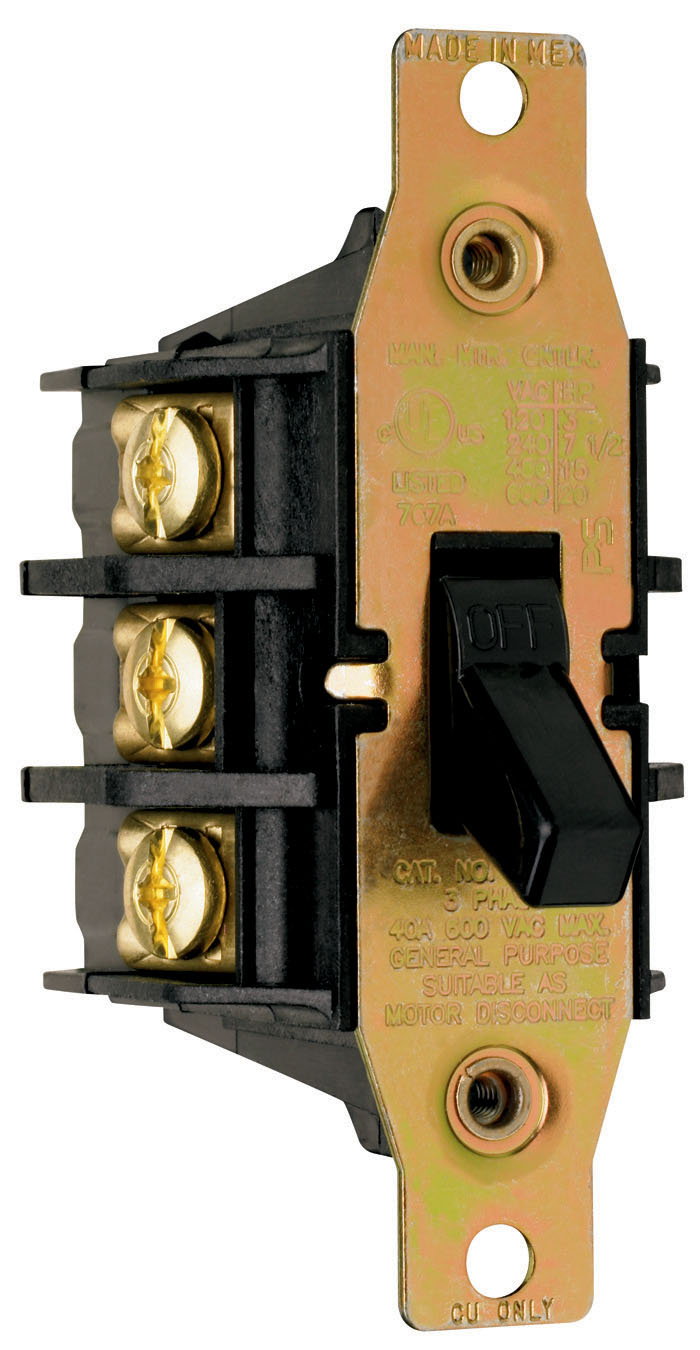

Pass & Seymour 7843-MD 40 Amp 3-Pole 3-Phase AC Motor Disconnect

Manufacturer: Legrand / Pass & Seymour | Catalog # 7843MD | North Coast Part # 1268394
$126.40/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
2 available

For Delivery

Order by Wednesday 4:00pm PT for delivery Thursday
Not available for delivery*
Check your local branch
Specification Sheet Brochure
Three Pole, Three Phase Switch (7843), Canada Only Motor Disconnect. 40 amps, 600 volts.

Technical Information

Actuator
Toggle
Amperage
40 Amp
Applications
Commercial/Industrial
Blade Dimensions
1.8255 in W x 1.753 in D x 2-3/8 in H
Mounting Type
Box
Number of Poles
2 Pole
Operating Cycles
50,000 cycles minimum, resistive, inductive, tungsten filament lamp load (Fed Spec)
Operating Temperature
Maximum continuos +75C, minimum -40C
Size
1.753" Depth x 1.8255" Width x 2.375" Height
TC Connection
Side & Back Wired
Temperature Rating
-40 to 75 C Continuous
Type
Manual Controller
Voltage
600 Volt

Manufacturer Information

Family Brand Name
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

Color
Black
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
GTiN
00785007267723
Product UPC
78500726772

Dimensions

Depth
1.753 Inch
Height
2-3/8 Inch
Width
1.825 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Certifications
  • cULus Listed
