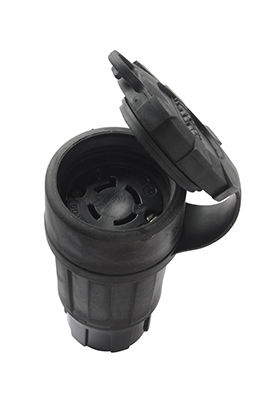

P&S 27W76BK TL CONN IP67 20A 3PH 48

Manufacturer: Legrand / Pass & Seymour | Catalog # 27W76BK | North Coast Part # 1268414

$103.69/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 11 to 17 days
Rated watertight for 1,500 psi high-pressure hosedown, P&S watertight plugs and connectors feature multiple seals to ensure protection against the environment. Thermoplastic elastomer (TPV) construction stands up to impacts, oils, chemicals, heat and weather.

Technical Information

Amperage
20 Amp
Applications
High-pressure washdowns. Particle build-up. Condensation. Corrosive substances. Food and beverage processing plants can be harsh, challenging environments. Fortunately, we have a full menu of electrical devices that keep things running smoothly while protecting people and equipment. IEC PIN & SLEEVE DEVICES Watertight Plugs & Connectors Thermoplastic elastomer body resists water, oils, lubricants and soaps while maintaining NEMA 4, 4X, 6, 6P, and IP65, 66, 67 ratings Ideal for washdown areas rated watertight for 1,500 PSI high-pressure hose down Nickel-plated blades and contacts for long-lasting, superior corrosion resistance Watertight compression cord grips and a multipoint sealing system between the plug and connector ensures protection from water and contaminants P
Cord Type
14/4 S to 10/4 S, .560" min to .775" max
Material
Rubber
NEMA
L16-20R
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4.0
Type
Connector
Voltage
480 Volt
Wire Size
14-10 AWG

Manufacturer Information

Family Brand Name
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

Color
Black
Environmental Conditions
-40 to 60 C
GTiN
00785007040746
Product UPC
78500704074

Dimensions

Diameter
2.53 in
Length
4.88 Inch

Certifications and Compliance

Buy American Compliant
Yes
Country of Origin
USA
  • Multi-point sealing system provides environmental protection of NEMA 4, 4X, 6, 6P, & IP67 rated.
  • Devices resist high-pressure hosedown of 1,500 psi.
  • For Covering Patents, see www.legrand.us/patents.
  • Large ribs on body for a superior grip when mating.
  • Color-coded sealing bushings provided for large range of cord diameters
  • Thermoplastic elastomer (TPV) construction stands up to impacts, oils, chemicals, heat and weather.
  • Nickel-plated blades and contacts for long-lasting, superior corrosion resistance.
