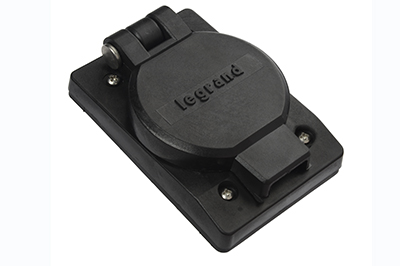

P&S 69W76BK SNG REC IP67 30A 3PH 48

Manufacturer: Legrand / Pass & Seymour | Catalog # 69W76BK | North Coast Part # 1268434
$160.37/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 11 to 17 days
Specification Sheet Brochure
P&S Turnlok watertight receptacles feature impact-resistant Valox lids, cover plates and receptacle bodies that withstand impacts, chemical and corrosion. Ideal for the harsh environments typically found in food & beverage processing plants, petrochemical plants, marinas & shipbuilding locations, mining locations, mills and more.

Technical Information

Amperage
30 Amp
Applications
Commercial
Dielectric Strength
Connectors: 2000V AC if rated 300V or less, 3000V AC if rated above 300V. Plugs: 2500V AC if rated 300V or less, 3500V AC if rated above 300V.
Material
Thermoplastic
NEMA
L16-30R
Number of Phases
3 Phase
Number of Poles
2 Pole
Number of Wires
3.0
TC Connection
Screw terminals
Temperature Rating
-40 to 60 C
Type
Receptacles
Voltage
480 Volt
Wire Size
14-10 AWG

Manufacturer Information

Family Brand Name
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

Color
Black
GTiN
00785007040678
Product UPC
78500704067

Dimensions

Length
1-1/4 Inch

Certifications and Compliance

Buy American Compliant
Yes
Certifications
CSA,UL
Country of Origin
USA
  • Stainless-steel hinge spring and pin ensure corrosion resistance.
  • For covering patents, see www.legrand.us/patents.
  • Impact-resistant Valox lid, cover plate and receptacle body withstand impacts, chemicals and corrosion.
  • Spring-loaded flip cover provides protection when device is not in use.
Certifications
  • CSA Listed
  • UL Listed
