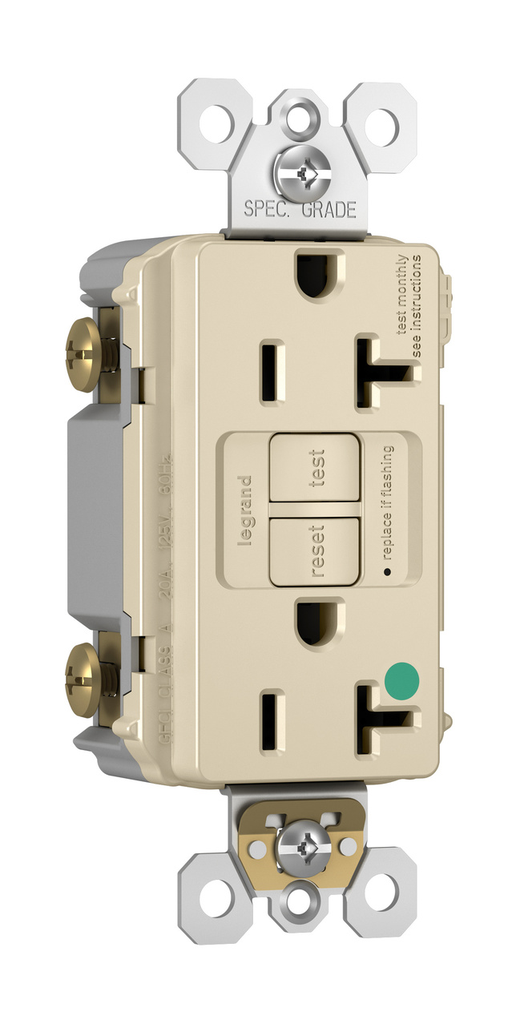

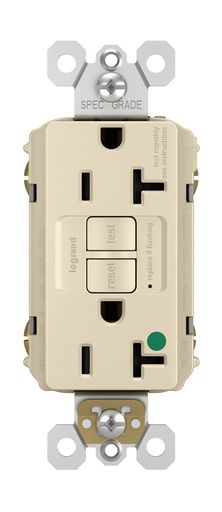

Product image for P&S 2097HGTRNALA SELF-TEST GFCI HG
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

P&S 2097HGTRNALA SELF-TEST GFCI HG

Manufacturer: Legrand / Pass & Seymour | Catalog # 2097HGTRNALA | North Coast Part # 1268441
$132.29/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Installation / Instruction Manual
Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock™ Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.For more detailed information, visit our GFCI Outlets and Receptacles page.

Technical Information

Actuator
Control Circuit
Amperage
20 Amp
Applications
Commercial,Residential
Connection Type
Back Wire,Side Wire
Frequency
60 Hz
Interrupt Rating
4.0 A
Material
Thermoplatic
NEMA
5-20R
Number of Poles
2 Pole
Operating Temperature
-35degrees C to +66degrees C
TC Connection
Back and Side Wire
Trip Range
4 mA
Trip Type
.025 Second Nominal
Type
Hopital-Grade Audible Alarm Tamper-Resistant 20A Self-Test Duplex GFCI
Voltage
125 Volt

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007050257
Color
Almond
Environmental Conditions
95 PCT
GTiN
00785007050257
Product UPC
78500705025

Dimensions

Depth
0.98 Inch
Height
2.62 Inch
Length
1.03 Inch
Width
1.72 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Protects children: patented shutter system helps prevent improper insertion of foreign objects.
  • Meets NEC® Tamper-Resistant requirements.
  • Conducts an automatic test every three seconds, ensuring its always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced.
  • SafeLock® Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected
  • High-impact-resistant thermoplastic construction with tri-drive terminal screws.
Certifications
  • cULus Listed
Compare
