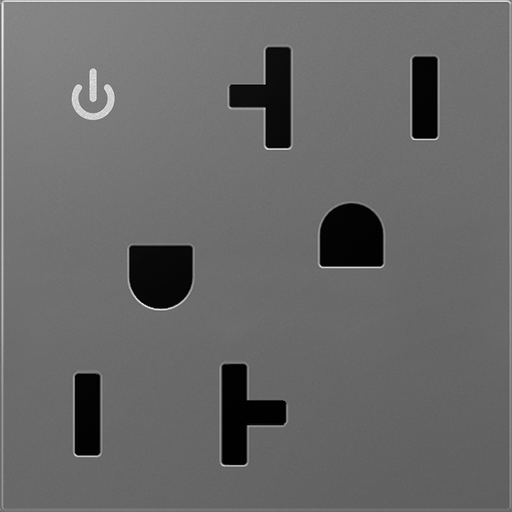

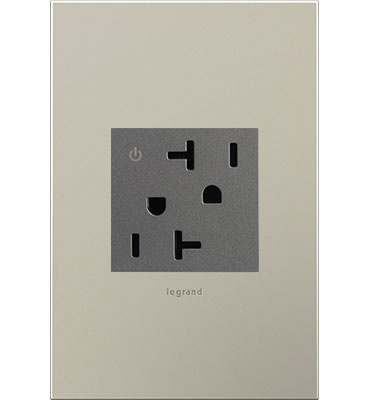

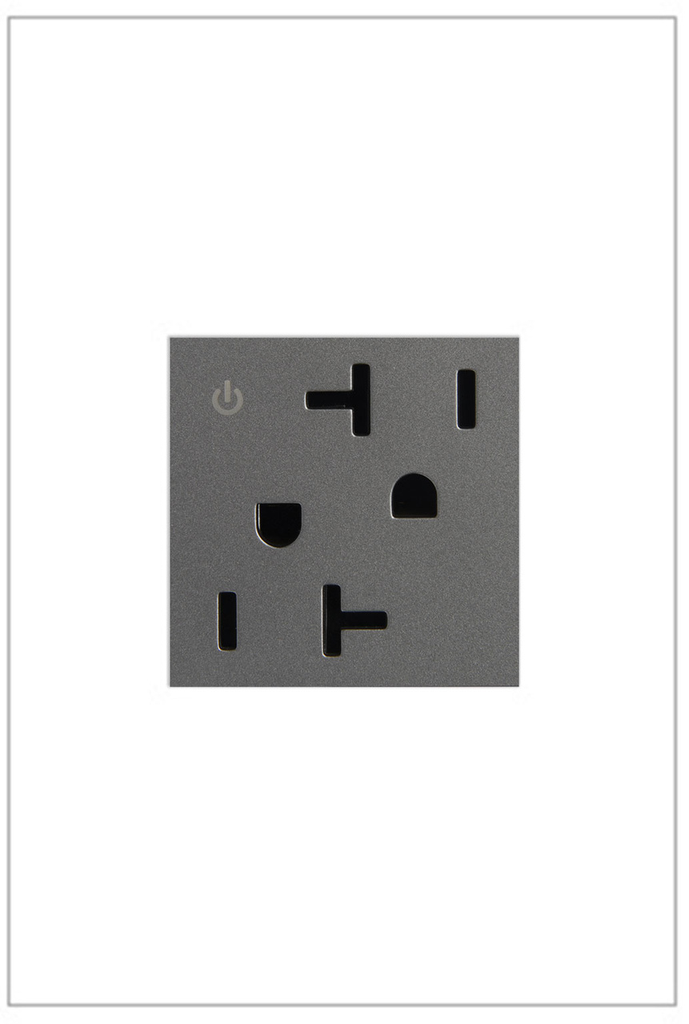

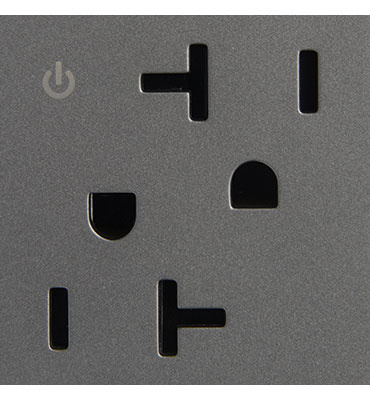

Pass & Seymour ARCD202-M10 20A 125V Dual Control adorne Outlet - Magnesium

Manufacturer: Legrand / Pass & Seymour | Catalog # ARCD202M10 | North Coast Part # 1268546
$68.52/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page Installation / Instruction Manual
A modern upgrade for style, safety and energy management, this tamper-resistant, dual-controlled outlet from the adorne Collection installs easily in place of an existing outlet. Made exclusively for use with screwless Wall Plates from the adorne® Collection, sold separately.

Technical Information

Amperage
20 Amp
Applications
Residential
Conductor Size
14-10 AWG
Connection Type
Back Wire,Internal Pressure Plates,Side
Indoor Outdoor
Indoor
Material
Polycarbonate
Mounting Type
Box
NEMA
20A
Number of Gangs
1 Gang
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Outlet Type
Indoor,Residential,Tamper-Resistant
TC Connection
Side and Back Wire
Type
Tamper-Resistant Dual Controlled 20A Outlet, Magnesium
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
adorne

General Product Info

12-Digit UPC
785007050684
Color
Magnesium
Finish
Matte
GTiN
00785007050684
Product UPC
78500705068

Dimensions

Depth
1.73 Inch
Height
2.12 Inch
Warranty Length
Limited Lifetime
Width
1.77 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Features
  • For complete installation, device must be paired with an adorne® screwless Wall Plate (not included). Available in a range of contemporary colors and stunning finishes.
  • Installs in 15 minutes or less, fitting into an existing electrical box. No new wiring required for typical installation.
  • Independently cut power to either plug when not in use to conserve energy.
  • Protects children with a patented tamper-resistant shutter system that prevents improper insertion of foreign objects, complete with \"\"invisi-shutters\"\" for an invisible effect.
  • More color options available to fit any style, including finishes to match current hardware and lighting trends.
Certifications
  • UL Listed
  • cULus Listed
