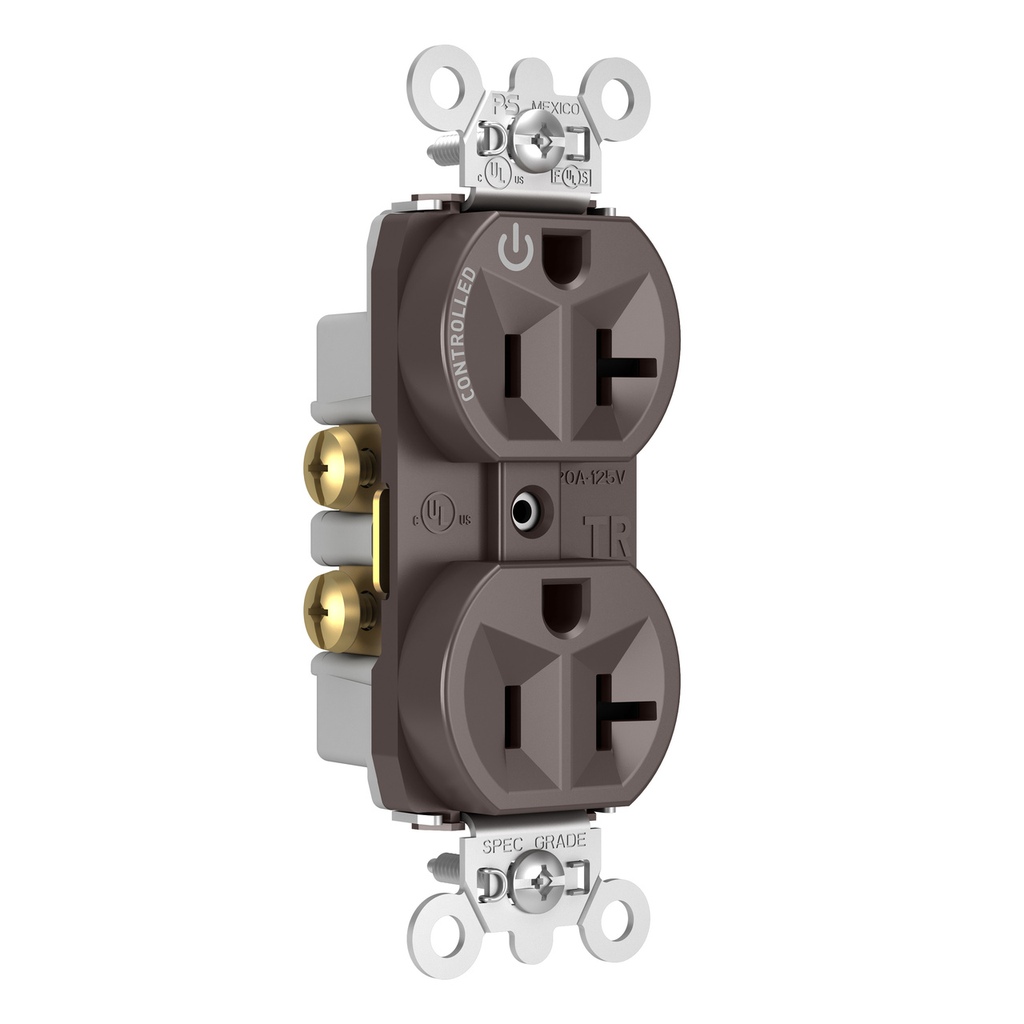

Product image for P&S TR5362CH PLUG LOAD RECEP 20A 12
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

P&S TR5362CH PLUG LOAD RECEP 20A 12

Manufacturer: Legrand / Pass & Seymour | Catalog # TR5362CH | North Coast Part # 1268597
$19.09/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure
Permanent controlled receptacle marking allows for long-lasting, easy identification of controlled receptacle for end-users. NEMA-approved and compliant with NEC, CA Title 24, and ASHRAE Energy Efficiency Standard 90.1.

Technical Information

Amperage
20 Amp
Capacity
Duplex
Duty Rating
Commercial Spec,Hard Use
Grade
Commercial
NEMA
5-20R
Type
Receptacles
Voltage
125 Volt

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007051216
Color
Brown
GTiN
00785007051216
Product UPC
78500705121
UNSPSC
39121406

Dimensions

Depth
1.13 Inch
Height
2.635 Inch
Width
1.322 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • Can be wired to any number of system-based or stand-alone plug load control solutions.
  • Two drive screws anchor strap to back body and face where abrupt removal torque is greatest.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Permanent controlled receptacle markings using abrasion resistant ink.
  • Two drive screws anchor strap to back body and face where abrupt removal torque is strongest.
  • Tri-drive brass-plated terminal screws. Two back-wire holes for more wiring flexibility.
  • Strap tabs wrap around face to prevent strap from separating from face and back body.
  • CH Version Only: Split circuit tab broken at the factory, allowing half of the receptacle to be controlled.
  • For covering patents, see www.legrand.us/patents.
Certifications
  • cULus Listed
  • Federal Spec Listed
