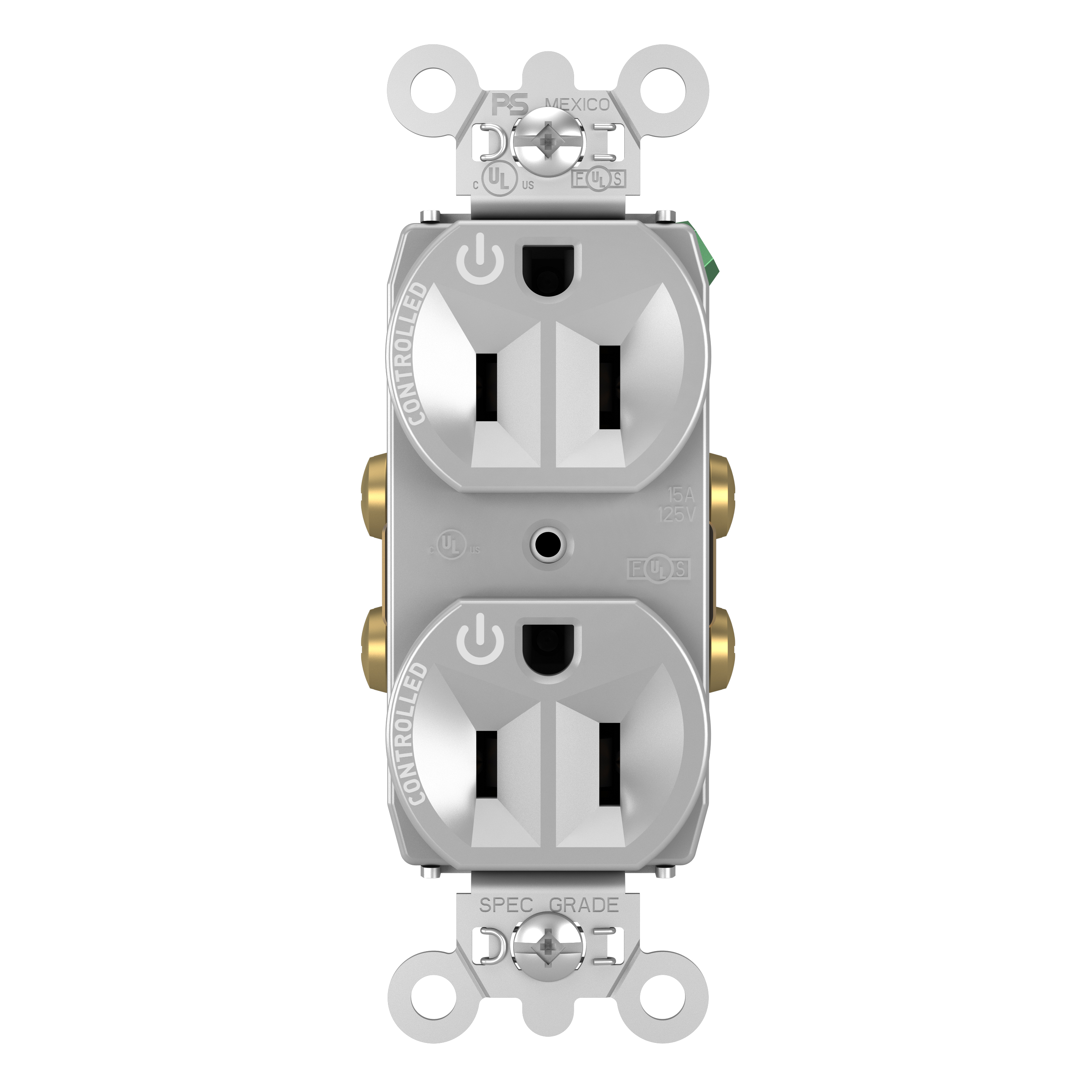

Product image for P&S TR5262CDGRY PLUG LOAD RECEP 15A
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

P&S TR5262CDGRY PLUG LOAD RECEP 15A

Manufacturer: Legrand / Pass & Seymour | Catalog # TR5262CDGRY | North Coast Part # 1268605
$15.52 /ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure
Permanent controlled receptacle marking allows for long-lasting, easy identification of controlled receptacle for end-users. NEMA-approved and compliant with NEC, CA Title 24, and ASHRAE Energy Efficiency Standard 90.1.

Technical Information

Amperage
15 Amp
Applications
Commercial
Capacity
Duplex
Duty Rating
Commercial Spec,Hard Use
Grade
Commercial
Indoor Outdoor
Indoor
NEMA
5-15R
Number of Poles
2
Number of Wires
3
Outlet Type
Straight Blade,Tamper-Resistant
Type
Receptacles
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007051209
Color
Gray
GTiN
00785007051209
Product UPC
78500705120
UNSPSC
39121406

Dimensions

Depth
0.78 Inch
Height
2.63 Inch
Warranty Length
1 yr
Width
1.322 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • Can be wired to any number of system-based or stand-alone plug load control solutions.
  • Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Permanent controlled receptacle markings using abrasion resistant ink.
  • Two drive screws anchor strap to back body and face where abrupt removal torque is strongest.
  • Tri-drive brass-plated terminal screws. Two back-wire holes for more wiring flexibility.
  • Dual mechanical shutter system to help prevent insertion of foreign objects (for Tamper-Resistant models).
  • Strap tabs wrap around face to prevent strap from separating from face and back body.
  • CH Version Only: Split circuit tab broken at the factory, allowing half of the receptacle to be controlled.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Certifications
  • cULus Listed
  • Federal Spec Listed
