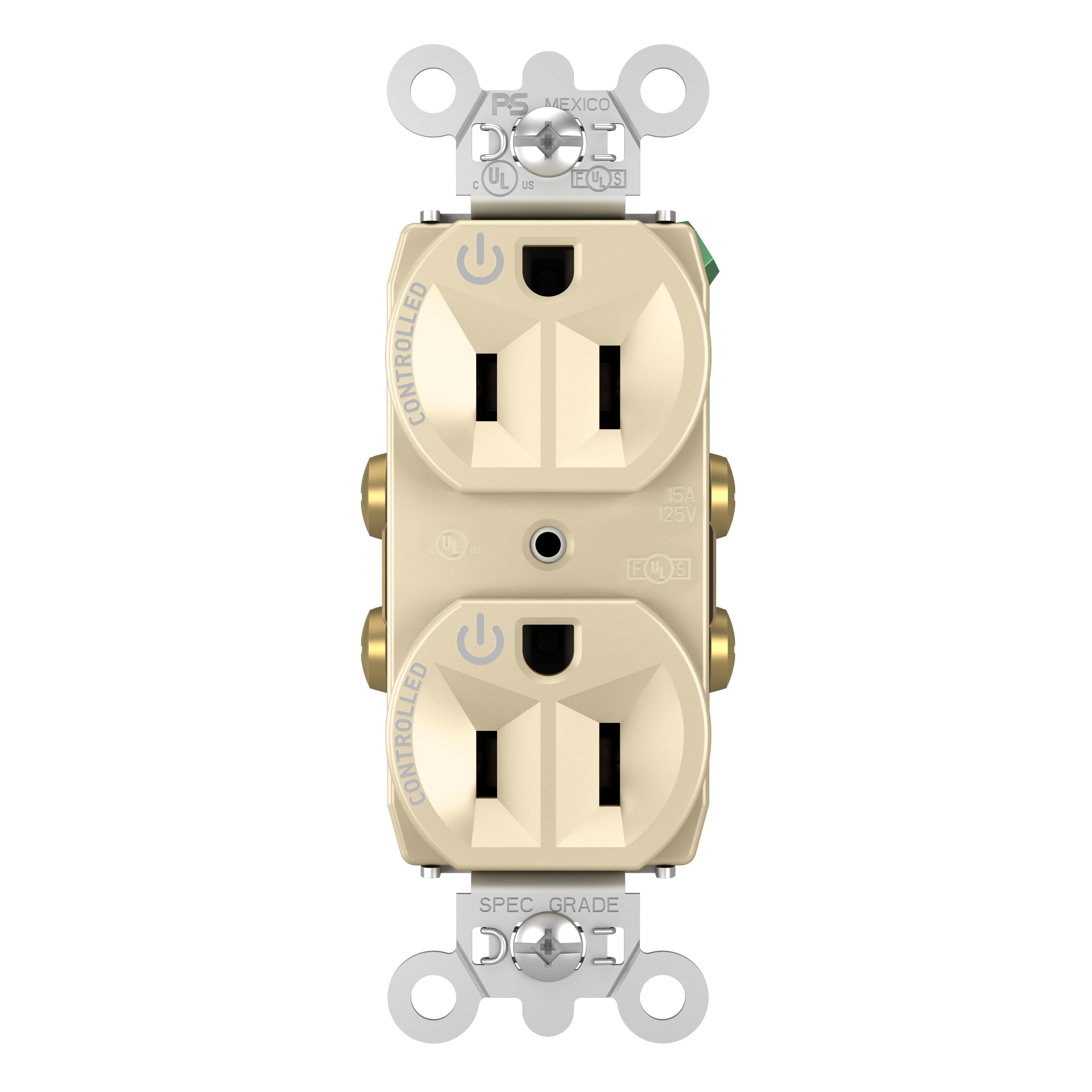

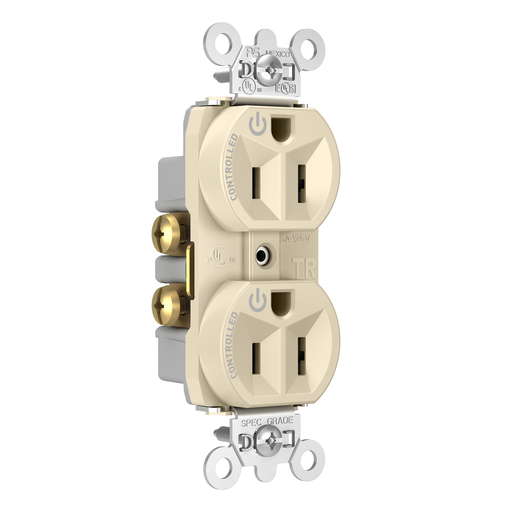

P&S TR5262CDLA PLUG LOAD RECEP 15A

Manufacturer: Legrand / Pass & Seymour | Catalog # TR5262CDLA | North Coast Part # 1268652

$12.73/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 11 to 17 days
Permanent controlled receptacle marking allows for long-lasting, easy identification of controlled receptacle for end-users. NEMA-approved and compliant with NEC, CA Title 24, and ASHRAE Energy Efficiency Standard 90.1.

Technical Information

Amperage
15 Amp
Capacity
Duplex
Duty Rating
Commercial Spec,Hard Use
Grade
Commercial
NEMA
5-15R
Type
Receptacles
Voltage
125 Volt

Manufacturer Information

Family Brand Name
Legrand-Pass & Seymour

General Product Info

Color
Light Almond
GTiN
00785007051179
Product UPC
78500705117
UNSPSC
39121406

Dimensions

Depth
0.78 Inch
Height
3.281 Inch
Width
1.322 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
  • Strap tabs wrap around face to prevent strap from separating from face and back body.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Tri-drive brass-plated terminal screws. Two back-wire holes for more wiring flexibility.
  • CH Version Only: Split circuit tab broken at the factory, allowing half of the receptacle to be controlled.
  • Can be wired to any number of system-based or stand-alone plug load control solutions.
  • Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • Two drive screws anchor strap to back body and face where abrupt removal torque is strongest.
  • For covering patents, see www.legrand.us/patents.
  • Dual mechanical shutter system to help prevent insertion of foreign objects (for Tamper-Resistant models).
  • Permanent controlled receptacle markings using abrasion resistant ink.
Certifications
  • Federal Spec Listed
