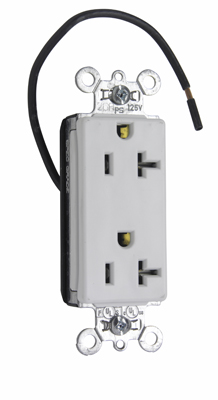

P&S PT26352SCCTW 20A HALF CTRL PLUG

Manufacturer: Legrand / Pass & Seymour | Catalog # PT26352SCCTW | North Coast Part # 1268855
$21.96/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 11 to 17 days
Specification Sheet
These durable, dependable receptacles feature a permanently marked, differentiated solution that meets all necessary code requirements. For detailed PlugTail® information, visit our PlugTail Headquarters.

Technical Information

Amperage
20 Amp
Applications
Commercial
Capacity
Duplex
Dielectric Strength
Withstands 2000V minimum
Grade
Federal Specification
Material
Thermoplastic
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3
Size
.78" (D) x 1.322" (W) x 3.281" (H)
Style
Decorator
TC Connection
PlugTail
Temperature Rating
Maximum continuous +60C, minimum -40 without impact
Type
Plugtail Duplex Receptacle
Voltage
125 Volt
Wire Size
12 AWG

Manufacturer Information

Family Brand Name
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

Color
White
GTiN
00785007496451
Product Series
PlugTail
Product UPC
78500749645

Dimensions

Depth
0.78 Inch
Height
3.281 Inch
Width
1.322 in

Certifications and Compliance

Country of Origin
Mexico
Eco-Benefit Information
  • LEED Contribution: Yes
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Half-controlled versions include welded, pre-wired lead that control top half of receptacle for split circuit applications.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents
  • Plated steel wrap strap design for maximum durability and corrosion resistance.
  • Permanent controlled markings on face of receptacle compliant with ASHRAE 90.1, CA Title 24, and NEC.
