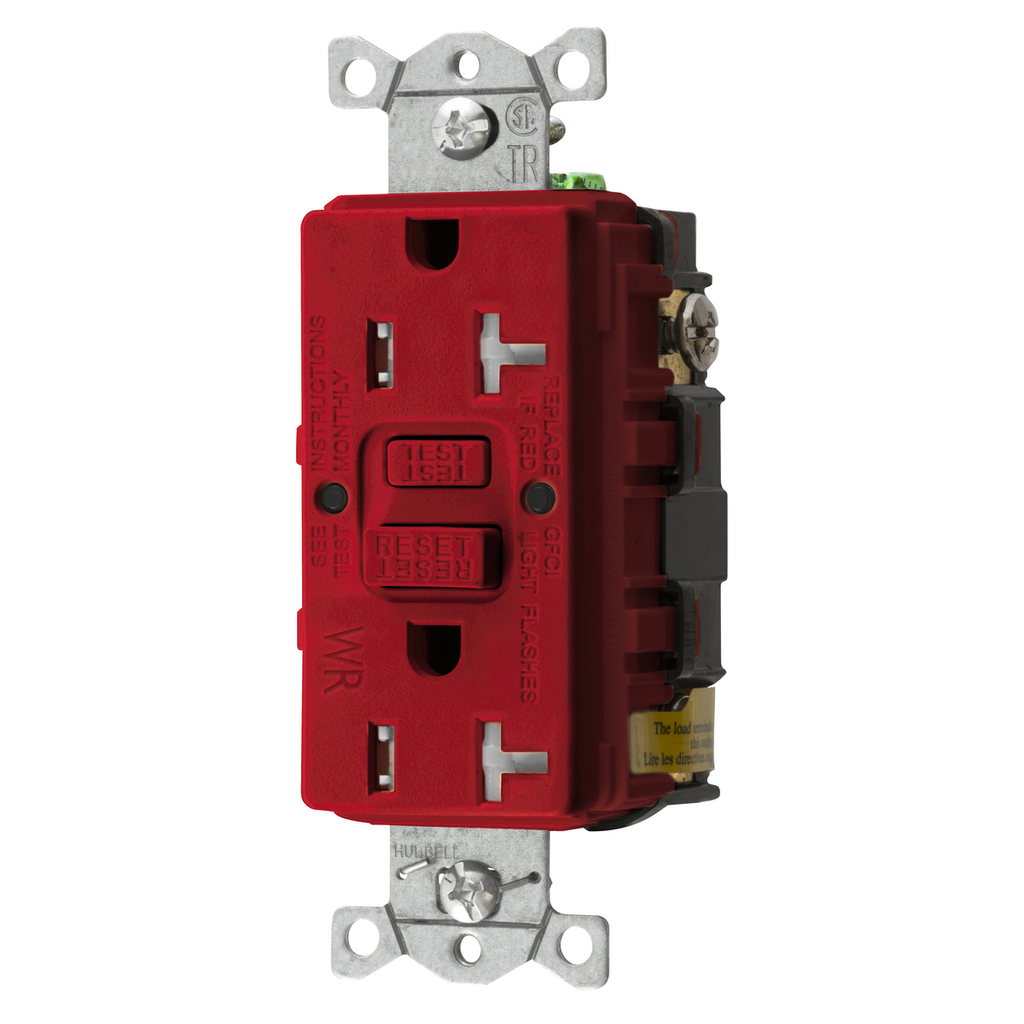

Product image for Hubbell GFTWRST20R20A COMM SELF TEST TRWR GFR RED
Image thumbnail 0
Image thumbnail 1
Email

Hubbell GFTWRST20R20A COMM SELF TEST TRWR GFR RED

Manufacturer: Hubbell / Kellems | Catalog # GFTWRST20R | North Coast Part # 1269529
$31.32/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 3:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page Installation / Instruction Manual
Power Protection Devices, Receptacle, Self Test, GFCI, TRWR, Commercial Grade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Red

Technical Information

Amperage
20 Amp
Applications
Commercial Grade
Conductor Size
14-12 AWG
Current
20 Amp
Material
Composite;Other
Mounting Type
Screw
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
Standard
Standard
CSA,NOM,UL
Style
Standard
TC Connection
Spade, 2 Terminals
Temperature Rating
-40 to 70 degrees C
Type
Decorator, Tamper and Weather Resistant
Voltage
125 Volt
Wattage
2500 Watt
Wire Size
14-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
883778122705
Color
Red
Environmental Conditions
Indoor Only
GTiN
00883778122705
Product Series
Heavy Duty
Product UPC
88377812270

Dimensions

Height
7.044 Inch
Length
5.048 Inch
Width
2.048 in

Certifications and Compliance

Country of Origin
China
Features
  • Patented shutter design for tamper-resistant protection
  • Meets NEC requirements for TR (517-18c) and WR (406.9), UV and corrosion resistance for harsh and damp applications
  • Patented AUTOGUARD® self test technology
  • Protects against line and load reversal, no power to the face or downstream if device is miswired
