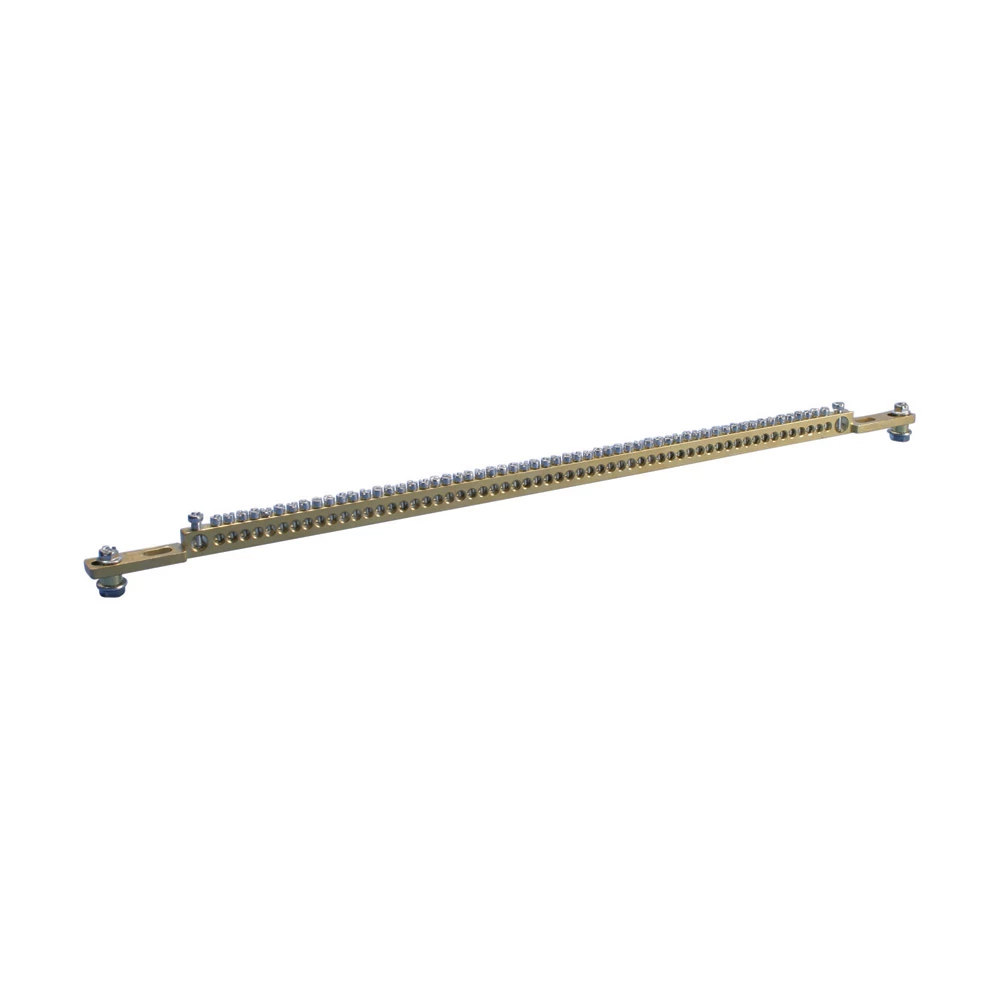

Product image for BAR,EARTH,60 TERMINAL, ....ASSEMBLY
Image thumbnail 0

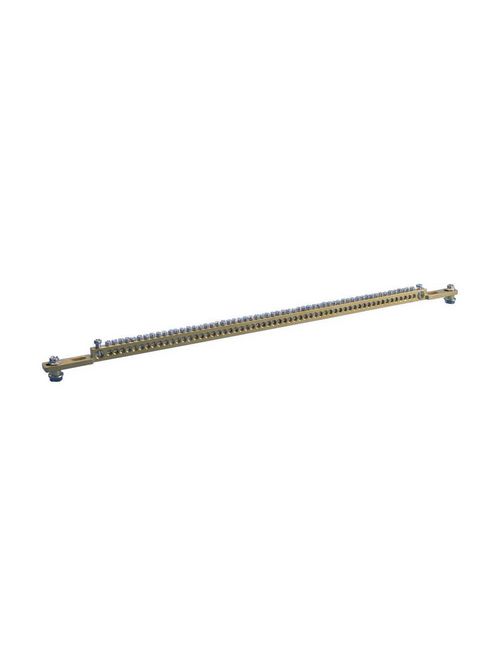

Image thumbnail 1
Image thumbnail 2
Email

BAR,EARTH,60 TERMINAL, ....ASSEMBLY

Manufacturer: Eriflex | Catalog # 568661 | North Coast Part # 1269693
$127.01/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page
Earthing / Grounding connecting bar used for inter-connection of several earthing / grounding conductors. Earthing & Neutral Brass Busbar EB60.

Technical Information

Applications
Formed 14-gauge steel. Continuously welded seams. Larger sizes include door and body stiffeners. Welded brackets provide for enclosure mounting. Formed lip on door and enclosure exclude flowing liquids and contaminants. Cutouts and holes are provided to suit the flange handle operating mechanism. Continuously hinged doors may be removed by pulling the stainless steel hinge pin. Door is secured with easily operated stainless steel clamps. Cover interlock bracket is welded to the door. Collar studs are provided for mounting inner panels. A removable 12 gauge inner panel is included. Seamless poured-in place gasket. A bonding stud is provided on the door and a grounding stud is provided in the enclosure. A literature pocket is provided for the inside of the door.
Material
Brass
Type
Grounding/Neutral Busbars and Accessories

Manufacturer Information

Brand
nVent Erico
Sub Brand
Eriflex®

General Product Info

12-Digit UPC
782856844990
GTiN
00782856844990
Product UPC
78285684499
Weight
0.31 kg
Certifications
  • UL ANSI/UL 467
  • cUL CSA C22.2 No. 41
  • UKCA, ERIFLEX EB EN 60998-1, EN 60998-2-1
Features
  • Use to connect several earthing conductors within a panel
  • Chamfered holes allow for easy connections
  • Mounting slots for universal fixing to copper busbar, directly to rails or spacers
  • Rigid bar
  • Mounting kits available for stacking busbars or fixing to DIN rail
  • RoHS compliant
