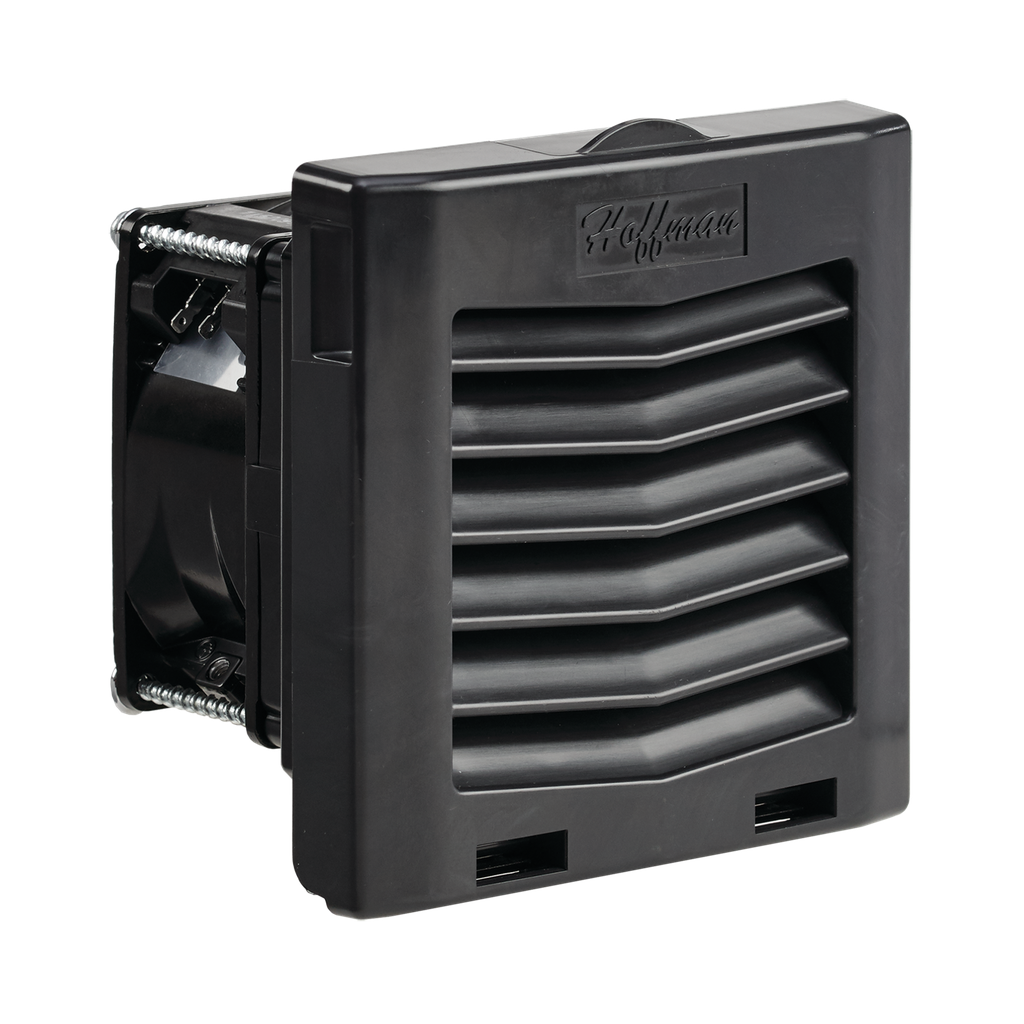

Product image for Hoffman HF0416413 HF04 Side-Mount Filter Fan, 115V, 21 CFM, Black
Email

Hoffman HF0416413 HF04 Side-Mount Filter Fan, 115V, 21 CFM, Black

Manufacturer: nVent Hoffman | Catalog # HF0416413 | North Coast Part # 1271890
$208.51/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
HF Side-Mount Filter Fans quickly install into enclosure with a click-fit design; no tools or screws required. Grilles open with the flick of a finger for easy filter replacement.

Technical Information

Airflow Rate
21
Amperage
0.1 Amp
Applications
For Industrial Automation, Automotive Assembly, Package Handling Equipment, Food and Beverage Process Controls, Wind Energy Systems
Blade Size
4 in
Color Coding
RAL 9011
Material
Plastic
Max Current
0.1 A
Max Temperature
131 degrees F
Min Temperature
14 degrees F
Power Rating
8.5/7.0 W
Size
4.42 x 4.44 x 3.65 in
Type
Side Mount
Voltage
100 Volt

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510342678
Color
Black
Finish
Black
GTiN
00783510342678
Housing Material
UV-Resistant Plastic
Product UPC
78351034267
Weight
1.6 lb

Dimensions

Depth
3.65 Inch
Height
4.42 Inch
Length
7.4 Inch
Width
4.44 in
Features
  • Click-Fit design quickly installs into enclosure wall; no tools or screws required
  • Opens with the flick of a finger for easy filter replacement
  • Enclosure side wall mounting
  • Reverse airflow option on HF13 models available to push/pull air through higher static pressure
  • Standard rope gasket provides proper seal to the enclosure
  • Similar cut-out sizes as other filter fan manufacturers
  • Terminal block connections
  • Optional thermostat available to save energy and extend service life
  • Hinged grille remains attached after opening
  • Size rage from 4 inch (102 mm) to 13 inch (325 mm)
  • Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.)
  • Service life hours from 40,000 to 100,000 hours
  • Operating temperature range of -4 F/-20 C to 149 F/65 C
