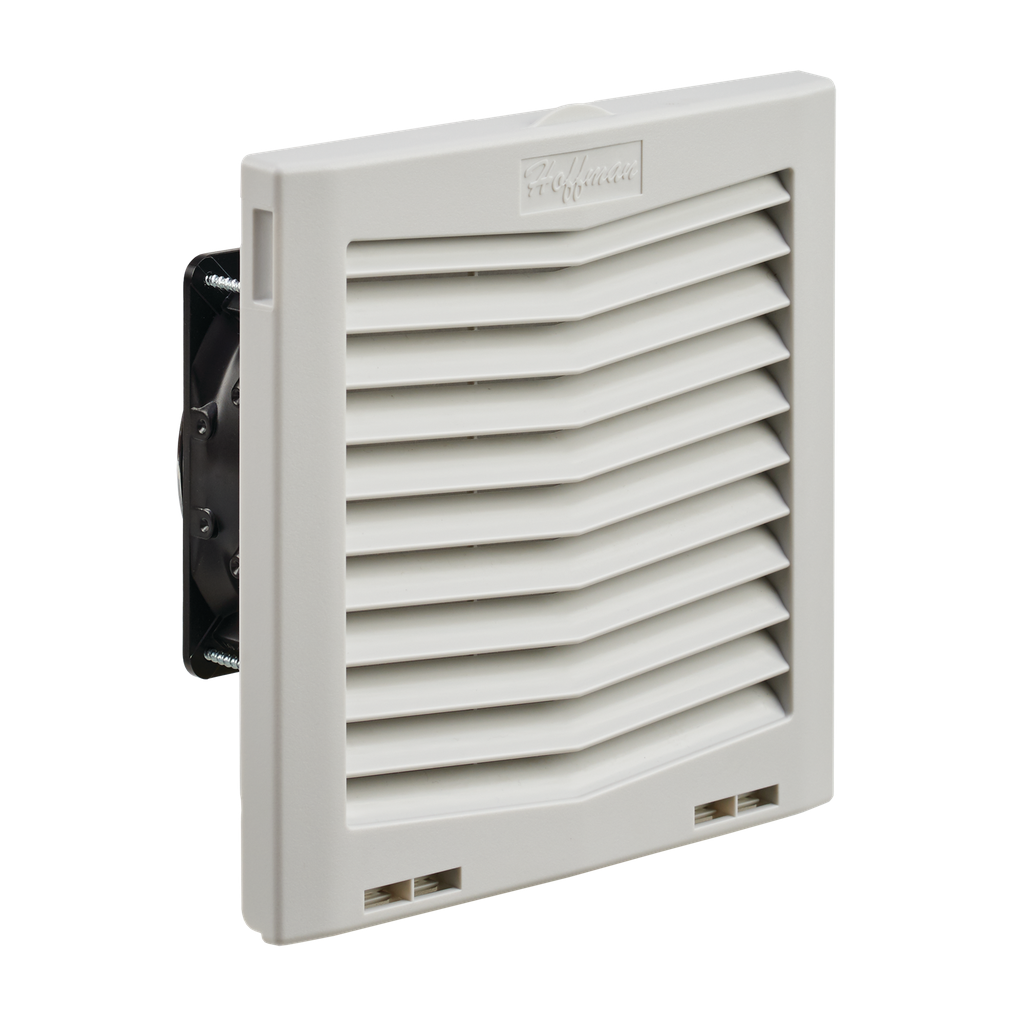

Product image for Hoffman HF0924414 HF09 Side-Mount Filter Fan, 24V, 70 CFM, Lt Gray
Email

Hoffman HF0924414 HF09 Side-Mount Filter Fan, 24V, 70 CFM, Lt Gray

Manufacturer: nVent Hoffman | Catalog # HF0924414 | North Coast Part # 1276813
$348.94/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
HF Side-Mount Filter Fans quickly install into enclosure with a click-fit design; no tools or screws required. Grilles open with the flick of a finger for easy filter replacement.

Technical Information

Airflow Rate
70
Amperage
0.35 Amp
Applications
For Industrial Automation, Automotive Assembly, Package Handling Equipment, Food and Beverage Process Controls, Wind Energy Systems
Blade Size
9 in
Color Coding
RAL 7035
Material
Plastic
Max Current
0.35 A
Max Temperature
149 degrees F
Min Temperature
-4 degrees F
Size
8.19 x 8.21 x 4.15 in
Temperature Rating
-20 to 65 degrees C
Type
Open-Loop Cooling
Voltage
24
Wattage
8.4 Watt

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510341978
Color
Gray
Finish
Matte
GTiN
00783510341978
Housing Material
Non-metallic
Product UPC
78351034197
Weight
2.7 lb

Dimensions

Depth
4.15 Inch
Height
8.19 Inch
Length
10-1/2 Inch
Width
10.50 in
Features
  • Click-Fit design quickly installs into enclosure wall; no tools or screws required
  • Opens with the flick of a finger for easy filter replacement
  • Enclosure side wall mounting
  • Reverse airflow option on HF13 models available to push/pull air through higher static pressure
  • Standard rope gasket provides proper seal to the enclosure
  • Similar cut-out sizes as other filter fan manufacturers
  • Terminal block connections
  • Optional thermostat available to save energy and extend service life
  • Hinged grille remains attached after opening
  • Size rage from 4 inch (102 mm) to 13 inch (325 mm)
  • Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.)
  • Service life hours from 40,000 to 100,000 hours
  • Operating temperature range of -4 F/-20 C to 149 F/65 C
