Thomas & Betts F9036 2 AWG 35 mm.. Non-Insulated Ferrule

Manufacturer: Thomas & Betts | Catalog # F9036 | North Coast Part # 1283573
$515.31/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

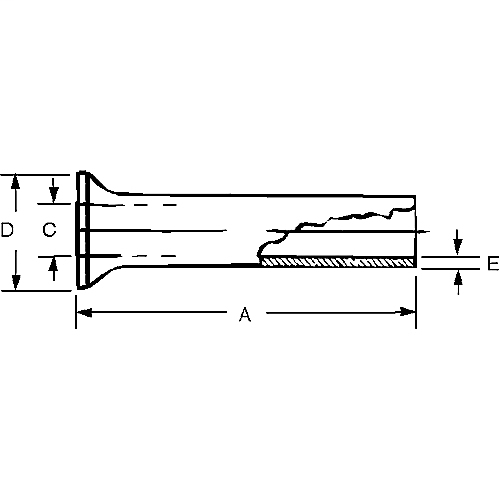

Non-Insulated Ferrule, Length 1.26 Inches/32mm, Inner Diameter .327 Inches/8.3mm, Outer Diameter .433 Inches/11mm, Conductor Size 2 AWG/35mm2, Copper, Tin Plated

Technical Information

Conductor Size
2 AWG
Insulation Type
Non-Insulated
Material
Copper
Standard
UL E489056
Temperature Rating
150 degrees C
Type
Non-Insulated
Wire Size
2 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210336145
Color
Metallic
Finish
Electro Tin Plated
GTiN
00786210336145
Product UPC
78621033614
Used With
Screw Clamp Terminal Blocks

Dimensions

Overall Length
1.26 in
Features
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
Notes
  • Ferrule dimensions conform to DIN 46228, Part 4.
