ABB F9033 NON-INS FERRULE 4, 25 MM2

Manufacturer: Thomas & Betts | Catalog # F9033 | North Coast Part # 1283574
$2,468.62/m (1000 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

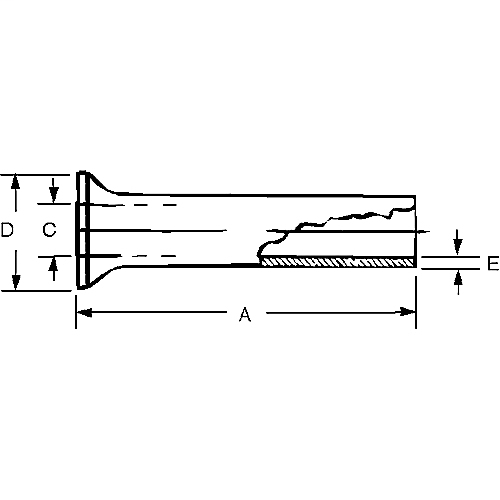

Non-Insulated Ferrule, Length 1.26 Inches/32mm, Inner Diameter .287 Inches/7.3mm, Outer Diameter .374 Inches/9.5mm, Conductor Size 4 AWG/25mm2, Copper, Tin Plated

Technical Information

Conductor Size
4 AWG
Insulation Type
Non-Insulated
Material
Copper
Standard
UL E489056
Temperature Rating
150 degrees C
Type
Non-Insulated Ferrule
Wire Size
4 AWG

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
786210336114
Color
Metallic
Finish
Electro Tin Plated
GTiN
00786210336114
Product UPC
78621033611
Features
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
Notes
  • Ferrule dimensions conform to DIN 46228, Part 4.
