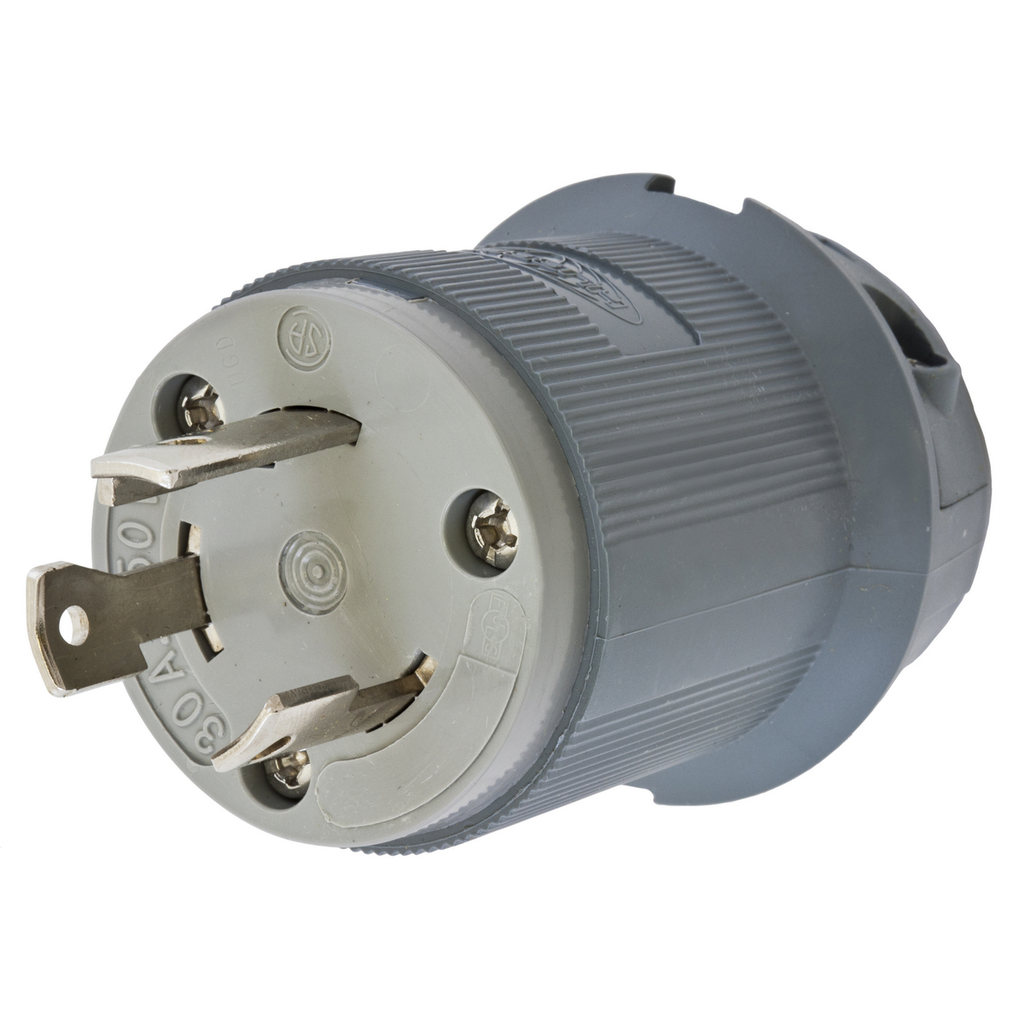

Product image for Hubbell Wiring Devices HBL2621F 30 Amp 250 Volt 2-Pole 3-Wire NEMA L6-30P Gray Locking Plug
Image thumbnail 0
Image thumbnail 1
Email

Hubbell Wiring Devices HBL2621F 30 Amp 250 Volt 2-Pole 3-Wire NEMA L6-30P Gray Locking Plug

Manufacturer: Hubbell / Kellems | Catalog # HBL2621F | North Coast Part # 128449
$93.77/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Insulgrip® Plug, 30A, 250V AC, 2 Pole, 3 Wire Grounding, NEMA L6-30P, Heat stabilized, gray Nylon

Technical Information

Amperage
30 Amp
Applications
Power Connection
Conductor Size
10-8 AWG
Cord Type
Portable
Current
30 Amp
Horsepower
2 hp
Material
Nylon
Mounting Type
Cord
NEMA
L6-20P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
#10-32 Bronze
Size
2.75 in x 2.26 in x 2.26 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Terminal Screws
Type
Male, High Temp Version
Voltage
250 Volt
Wattage
7500 Watt
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585038858
Color
Gray
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585038858
Housing Material
Gray Nylon
Product UPC
78358503885
Weight
0.35 lb

Dimensions

Height
2.26 Inch
Length
2-3/4 Inch
Width
2.26 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Superior cord grip design protects terminations from excess strain
  • Clear, funnel shaped wire entry for ease of termination
  • Integral dust shield protects wiring chamber from dust or contaminants
  • High Temperature Version
