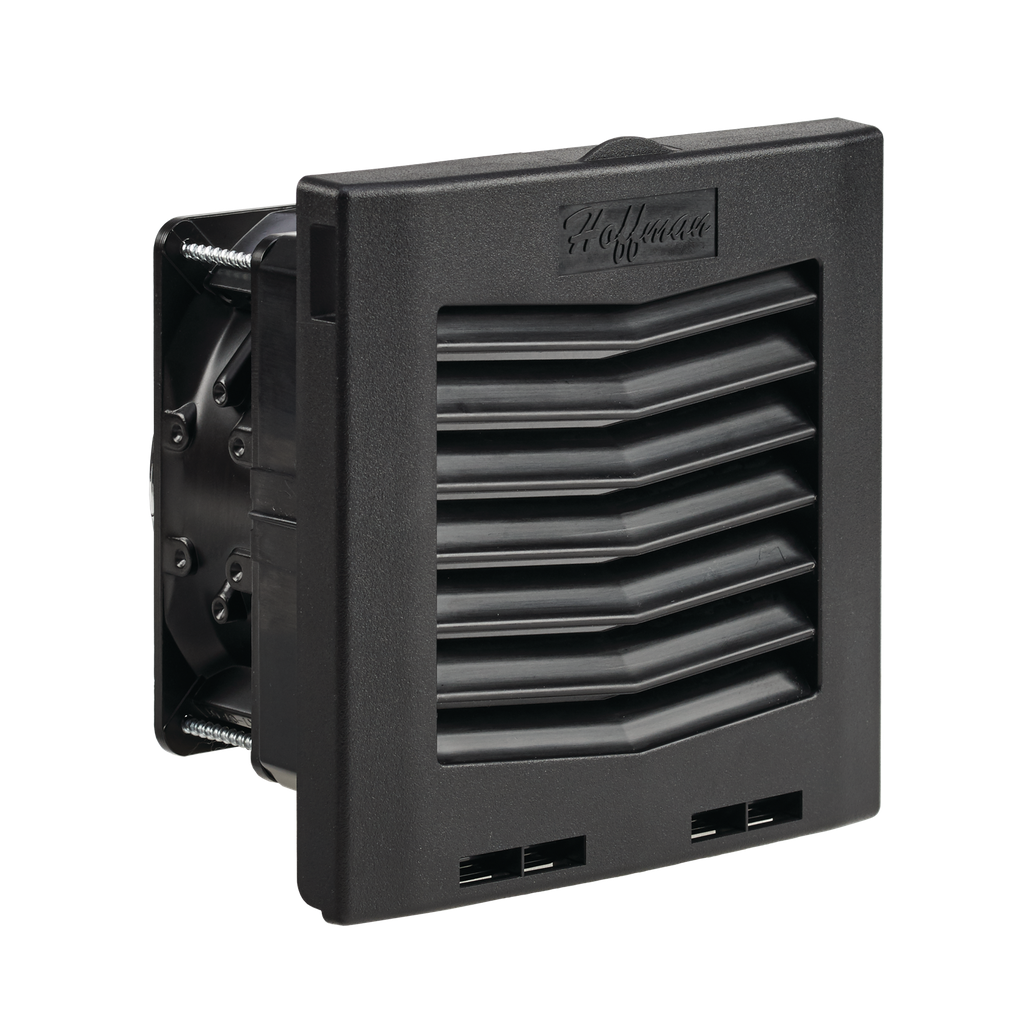

Product image for Hoffman HF0516513 HF05 Side-Mount Filter Fan, 115V, 12 CFM, Black
Email

Hoffman HF0516513 HF05 Side-Mount Filter Fan, 115V, 12 CFM, Black

Manufacturer: nVent Hoffman | Catalog # HF0516513 | North Coast Part # 1289174
$382.98/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
HF Side-Mount Filter Fans quickly install into enclosure with a click-fit design; no tools or screws required. Grilles open with the flick of a finger for easy filter replacement.

Technical Information

Airflow Rate
12
Amperage
0.16/0.14 Amp
Applications
Controls and Drives; Power Distribution
Color Coding
RAL 9011
Material
Plastic
Max Current
0.16/0.14 A
Max Temperature
131 degrees F
Min Temperature
14 degrees F
Size
6.15 x 6.16 x 3.98 in
Type
Open-Loop Cooling
Voltage
100 Volt

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510342739
Color
Black
Finish
Black
GTiN
00783510342739
Housing Material
Non-metallic
Product UPC
78351034273
Weight
2.1 lb

Dimensions

Depth
3.98 Inch
Height
6.15 Inch
Length
8.3 Inch
Width
6.16 in
Features
  • Click-Fit design quickly installs into enclosure wall; no tools or screws required
  • Opens with the flick of a finger for easy filter replacement
  • Enclosure side wall mounting
  • Reverse airflow option on HF13 models available to push/pull air through higher static pressure
  • Standard rope gasket provides proper seal to the enclosure
  • Similar cut-out sizes as other filter fan manufacturers
  • Terminal block connections
  • Optional thermostat available to save energy and extend service life
  • Hinged grille remains attached after opening
  • Size rage from 4 inch (102 mm) to 13 inch (325 mm)
  • Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.)
  • Service life hours from 40,000 to 100,000 hours
  • Operating temperature range of -4 F/-20 C to 149 F/65 C
