Hubbell HBL26419 60 Amp 600 Volt 3-Pole 4-Wire Yellow Locking Plug

Manufacturer: Hubbell / Kellems | Catalog # HBL26419 | North Coast Part # 129732
$1,006.20/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Hubbellock®, Industrial, Male Plug, 60A 600V, 3-Pole 4-Wire Grounding Hubbellock® Plug, Black phenolic interior with Yellow thermoplastic sleeve over steel housing, Non NEMA, Screw Terminal

Technical Information

Amperage
60 Amp
Applications
Heavy Duty Industrial
Conductor Size
10-4 AWG
Cord Type
Portable
Current
60 Amp
Grounding
Yes
Material
Plastic
Mounting Type
Cord
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA Standard,UL Standard
TC Connection
Pressure Terminal Screws
Type
Standard Sized, Straight Angled
Voltage
600 Volt
Wire Count
4
Wire Size
8-4 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Hubbell-Lock®

General Product Info

12-Digit UPC
783585017327
Color
Yellow
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585017327
Product UPC
78358501732
Weight
2.1 lb

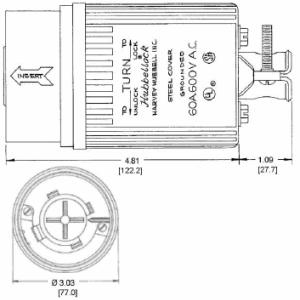

Dimensions

Height
5.9 Inch
Length
3.03 Inch
Width
3.03 in

Certifications and Compliance

Country of Origin
USA
Features
  • Molded-in male contacts are resistant to damage and provide a consistently positive connection
  • Insulated, color coded metallic housing enhances safety and abuse resistance
  • Box terminals in conjunction with stainless steel terminal screws provide maximum termination strength and dependability
