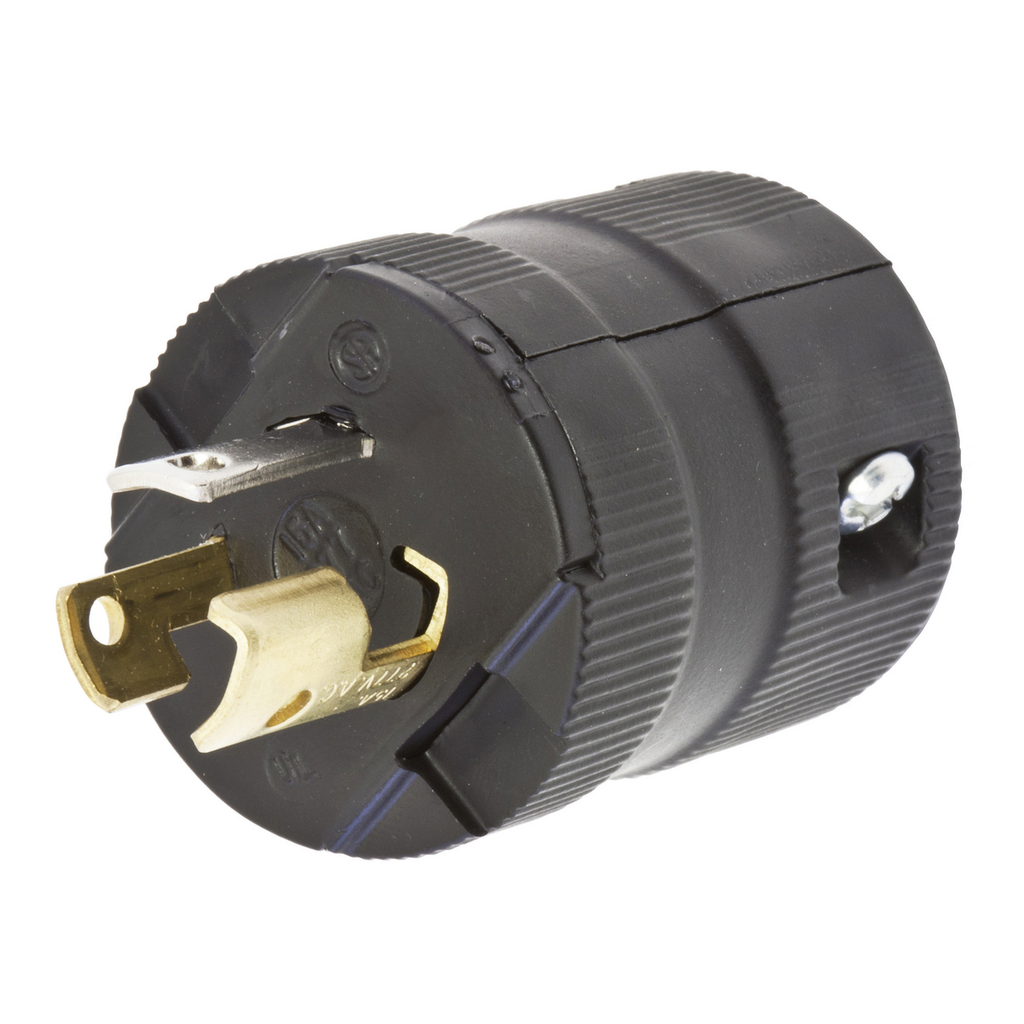

Hubbell HBL4773VBK 15 Amp 277 Volt 2-Pole 3-Wire NEMA L7-15P Black Locking Plug

Manufacturer: Hubbell / Kellems | Catalog # HBL4773VBK | North Coast Part # 130179
$29.37/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Valise®, Male Plug, 15A 277V AC, 2-Pole 3-Wire Grounding, NEMA L7-15P, Screw Terminal, Black Nylon.

Technical Information

Amperage
15 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
18-12 AWG
Contact Material
Brass
Cord Size
0.22 - 0.66 in
Cord Type
All Portable
Current
15 Amp
Horsepower
2 hp
Material
Nylon
Mounting Type
Cord
NEMA

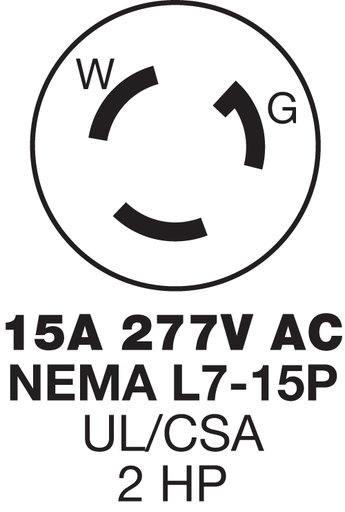

L7-15P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
1.50 in x 1.50 in x 1.87 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees C
Type
Extra Heavy-Duty, Industrial Grade
Voltage
277 Volt
Wattage
4155 Watt
Wire Count
3
Wire Size
18-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Valise®

General Product Info

12-Digit UPC
783585043302
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585043302
Product UPC
78358504330
Weight
0.10 lb

Dimensions

Height
1.87 Inch
Length
1-1/2 Inch
Width
1.50 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Two captive multiple drive assembly screws
  • Totally insulated impact and crush resistant nylon body
  • Powerful cord grips prevent conductor slippage and strain on wiring terminals
  • Standard Product
