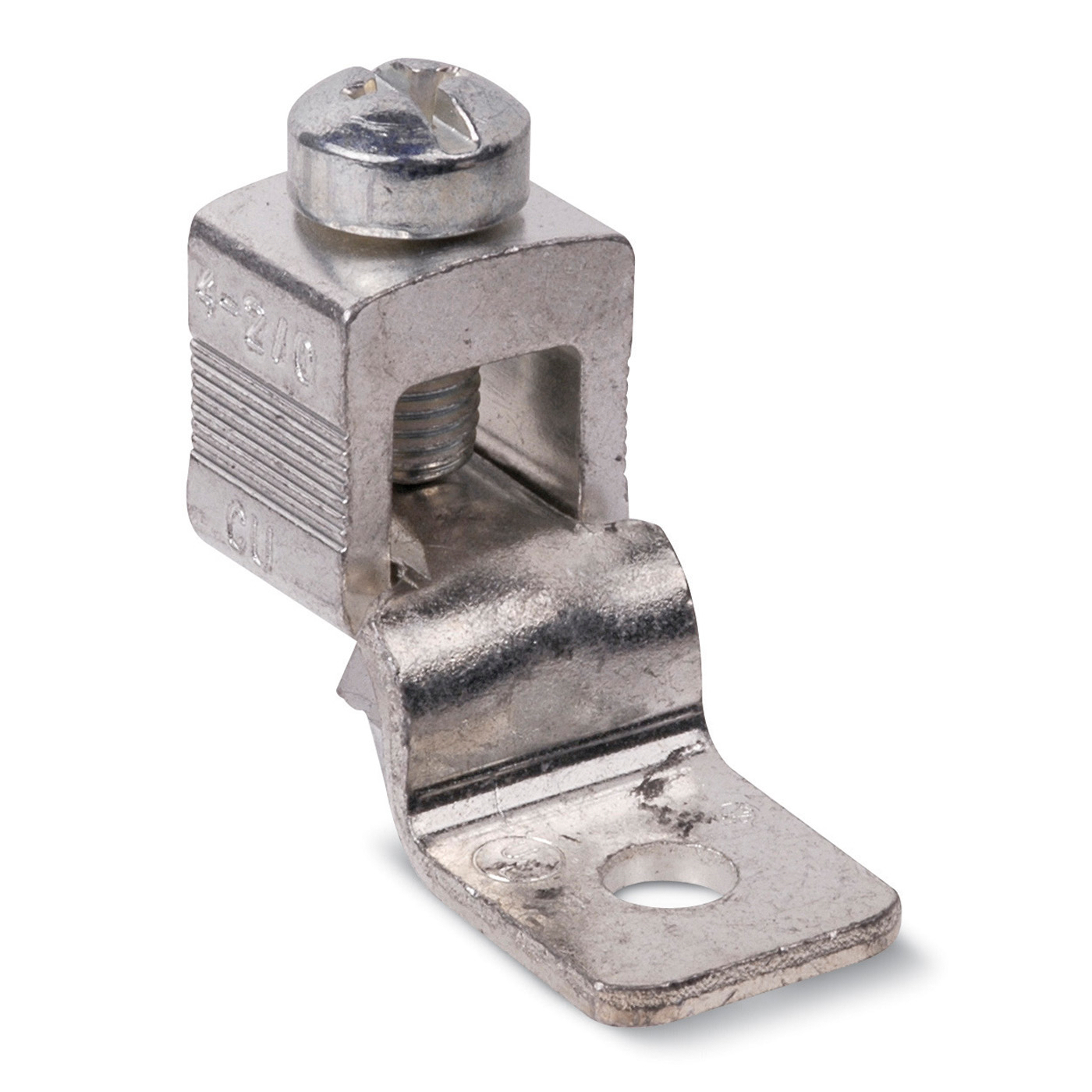

Blackburn 35501 Mechanical Lug Connector

Manufacturer: Thomas & Betts / Blackburn | Catalog # 35501 | North Coast Part # 130348
$4,603.63/c (100 ea)
ea
Order in multiples of 20 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page
Locktite One-Hole Lug, Offset Tongue, Aluminum Body, Copper Tongue, Conductor Range 4 to 2/0 AWG, 1/4 Inch Bolt, Aluminum Tin Plated

Technical Information

Applications
For Grip Cable Firmly Between Its Strong body and Serrated Copper Tongue
Bolt Size
1/4 in
Conductor Size
4-2/0 AWG
Conductor Type
Copper
Material
Aluminum
Mounting Hole Size
1/4 in
Number of Conductors
1
Standard
UL E9809
Type
Locktite

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®, Locktite®

General Product Info

12-Digit UPC
786210355016
Finish
Tin Plated
GTiN
05415022246254
Product UPC
78621035501
Features
  • Double laps at top give greater thread strength and lock screw when tightened.
  • Copper tongue makes a low resistance terminal.
Notes
  • Add suffix G to above catalog number for lug connector with green screw for grounding identification.
  • Hex head bolt.
  • Aluminum body.
