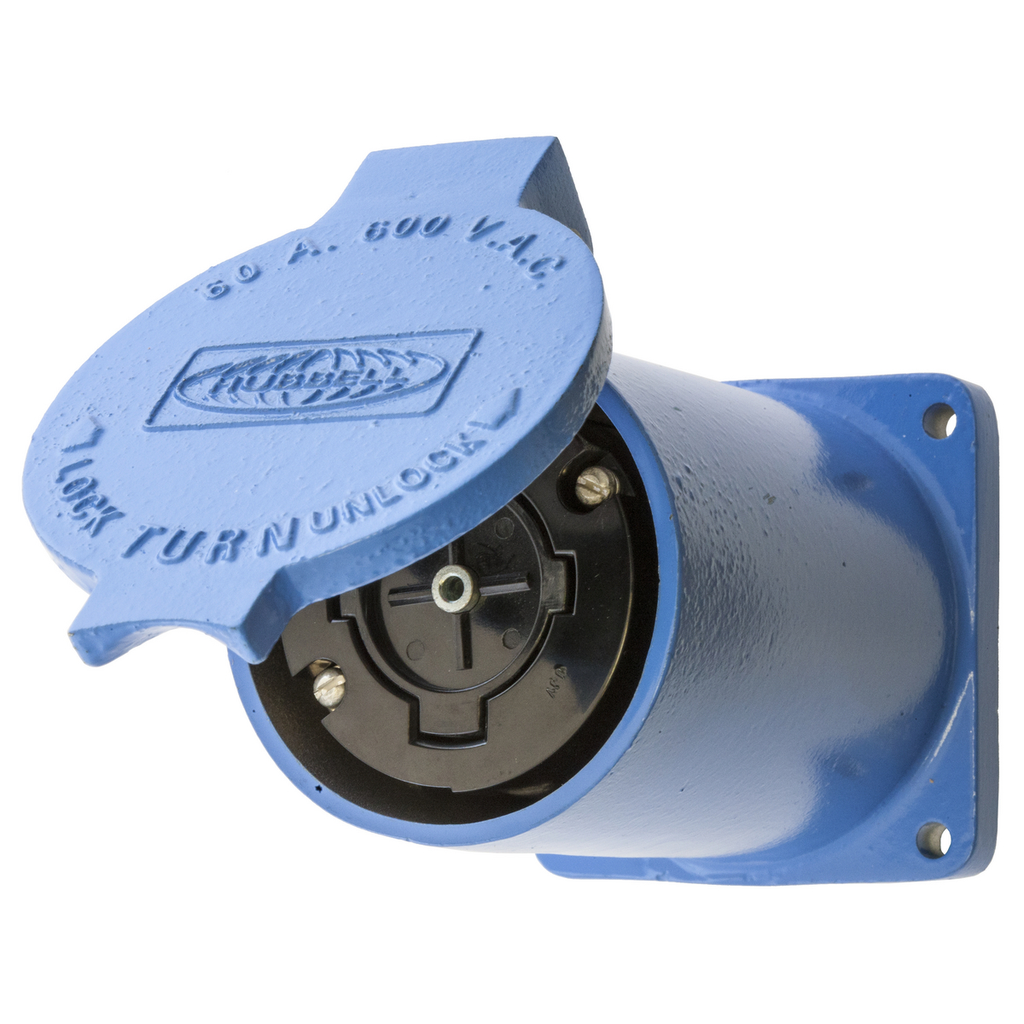

Product image for Hubbell HBL26520 60 Amp 600 Volt 4-Pole 5-Wire Blue Locking Receptacle
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell HBL26520 60 Amp 600 Volt 4-Pole 5-Wire Blue Locking Receptacle

Manufacturer: Hubbell / Kellems | Catalog # HBL26520 | North Coast Part # 130548
$1,505.90/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Hubbellock®, Industrial, Receptacle, 60A 600V AC, 4-Pole 5-Wire Grounding, Black phenolic interior with long aluminum housing and lift cover, Non NEMA, Screw Terminal, Blue

Technical Information

Amperage
60 Amp
Applications
Heavy Duty Industrial
Conductor Size
6 AWG
Current
60 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Thermoplastic
Mounting Type
Screw, Surface
Number of Phases
Multi Phase
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA Standard,UL Standard
TC Connection
Screw Terminal
Type
Receptacle
Voltage
600 Volt
Wattage
36000 Watt
Wire Count
5
Wire Size
8-4 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Hubbell-Lock®

General Product Info

12-Digit UPC
783585017518
Color
Blue
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585017518
Product UPC
78358501751
Weight
2.55 lb

Dimensions

Height
4.96 Inch
Length
3-1/2 Inch
Width
4.62 in

Certifications and Compliance

Country of Origin
USA
Features
  • Spring loaded safety shutter contains arcing when mating or un-mating devices under load
  • Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
  • Box terminals in conjunction with stainless steel screws provide maximum termination strength and dependability
  • Metallic weather protective spring loaded cover provides protection from moisture and dust
  • Auto Ejects Improperly Made Connection
