Blackburn 35601 Mechanical Connector Lug

Manufacturer: Thomas & Betts / Blackburn | Catalog # 35601 | North Coast Part # 131117
$14,621.74/c (100 ea)
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page

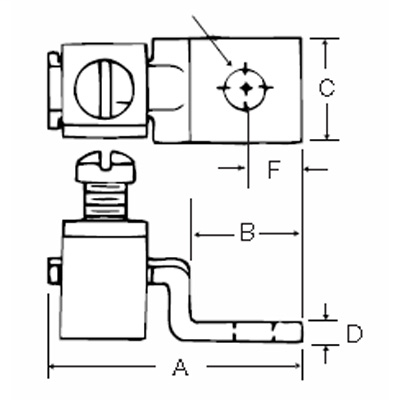

Locktite Copper One-Hole Lug, Offset Tongue for Conductor Range 1/0-4/0

Technical Information

Applications
For Copper Conductors
Bolt Size
3/8 in
Conductor Size
1/0-4/0 AWG
Conductor Type
Copper
Material
Copper
Mounting Hole Size
3/8 in
Standard
UL E9809
Tongue Type
Offset
Type
Locktite Connectors

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®, Locktite®

General Product Info

12-Digit UPC
786210356013
GTiN
00786210356013
Product UPC
78621035601
Features
  • Copper tongue makes a low resistance terminal.
  • Double laps at top give greater thread strength and lock screw when tightened.
Notes
  • Aluminum body.
  • Hex head bolt.
  • Add suffix G to above catalog number for lug connector with green screw for grounding identification.
