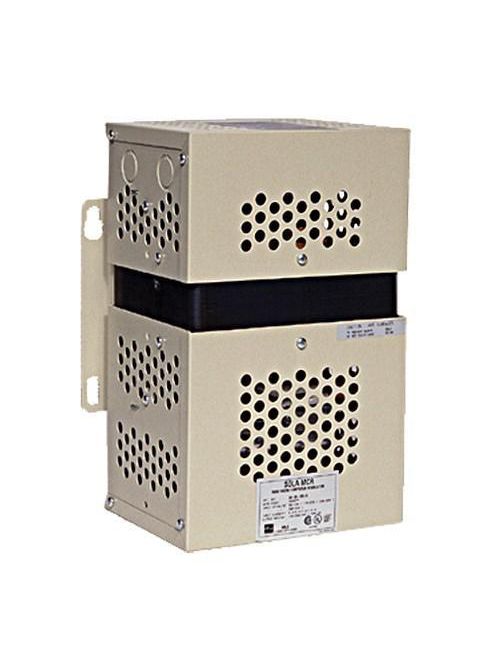

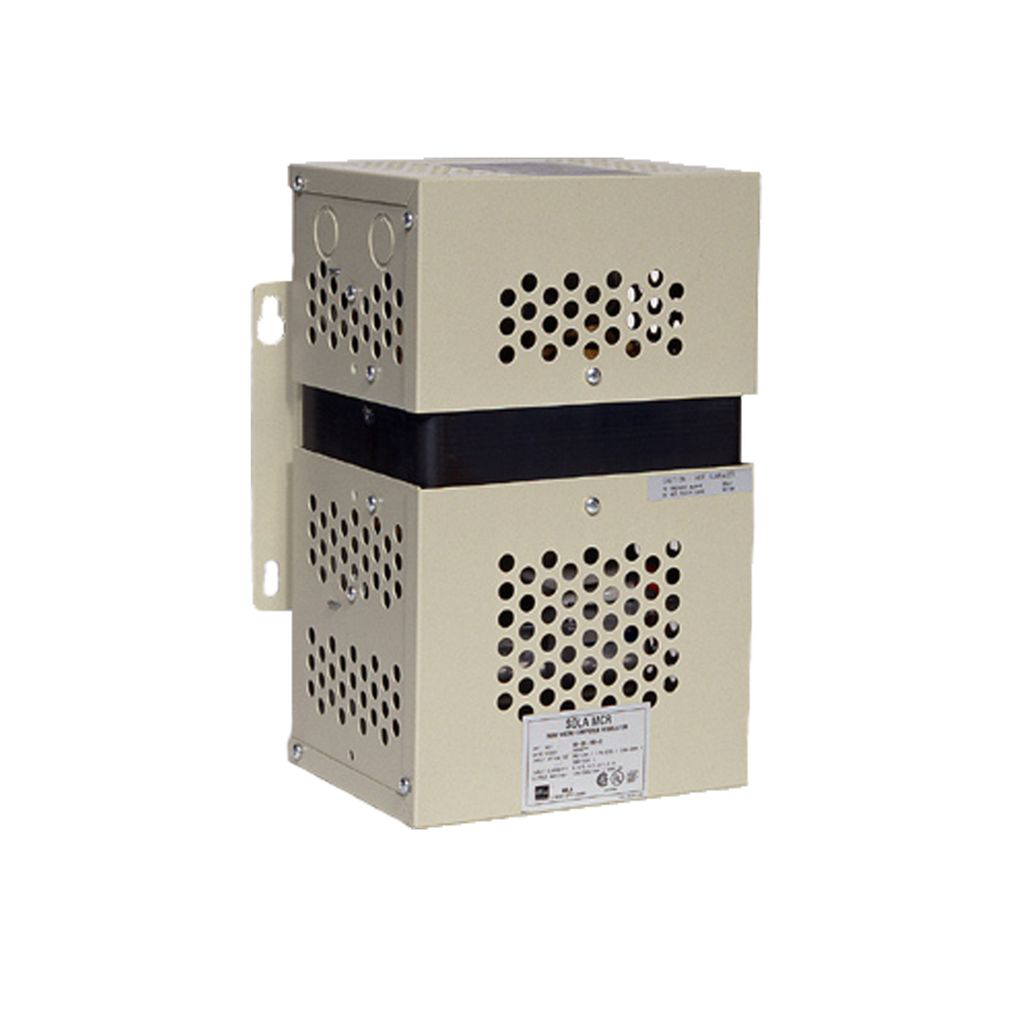

Product image for SolaHD 63-28-315-8 15000 VA 208/480 Volt Input 120/240 Volt Output 1-Phase Constant Voltage Transformer
Image thumbnail 0
Image thumbnail 1
Email

SolaHD 63-28-315-8 15000 VA 208/480 Volt Input 120/240 Volt Output 1-Phase Constant Voltage Transformer

Manufacturer: Hevi-Duty | Catalog # 63-28-315-8 | North Coast Part # 131285
$24,792.21/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet Brochure Product Catalog Page MDM Safety Data Sheet
MCR Hardwired Series Power Line Conditioning with Voltage Regulation provides excellent noise filtering and surge protection to safeguard connected equipment against damage, degradation or malfunction. This protection, combined with the excellent voltage regulation, can significantly increase the MTBF of protected equipment. The MCR is a perfect choice where dirty power caused by impulses, swell, sags, brownouts or waveform distortion can lead to costly downtime due to damaged equipment.

Technical Information

Applications
Industrial Automation and Control Equipment Power PLCs, Machine Tools, Robotics, Semiconductor Fabrication Equipment
Max Output Power
120/208/240
Number of Phases
1 Phase
Style
2
Type
MCR Hardwired Series Power Line Conditioning with Voltage Regulation

Manufacturer Information

Brand
SolaHD

General Product Info

12-Digit UPC
783472561971
GTiN
00783472561971
Product UPC
78347256197

Dimensions

Height
28 Inch
Length
9 Inch
Width
26 in

Certifications and Compliance

Buy American Compliant
Y
Features
  • cULus, CSA, RoHS
  • 3% output voltage regulation
  • Noise attenuation: 120 dB in common mode and 60 dB in transverse mode
  • Surge protection tested to ANSI/IEEE C62.41 Class A & B Waveform: <10 V let through typical
  • Acts as a step-up or step-down transformer
  • Harmonic filtering
  • Hardwired
  • Galvanic isolation provides exceptional circuit protection
  • 25 year typical MTBF. No maintenance required
