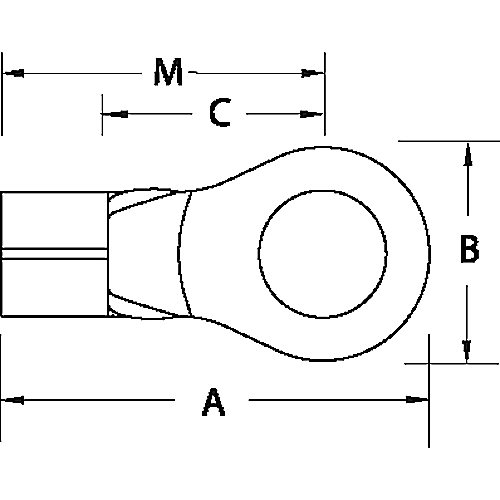

Image thumbnail 2
Email

ABB BC85 NON-INS RNG TRM HVYDTY 16-

Manufacturer: Thomas & Betts | Catalog # BC85 | North Coast Part # 131359
$83.16/c (100 ea)
ea
Order in multiples of 500 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page
Non-Insulated Heavy Duty Ring Terminal, Length .81 Inches, Width .25 Inches, Bolt Hole #6, Wire Range #16-#14 AWG Heavy Duty, Copper, Tin Plated, 500 Pack

Technical Information

Conductor Size
16-14 AWG
Insulation Type
Non-Insulated
Material
Copper
Standard
UL E9809
Temperature Rating
150 degrees C
Type
Non-Insulated Heavy-Duty Ring Terminal
Voltage
600 Volt
Wire Size
16-14 AWG

Manufacturer Information

Brand
Sta-Kon

General Product Info

12-Digit UPC
786210816654
Color
Metallic
Finish
Electro Tin Plated
GTiN
00786210816654
Product UPC
78621081665
Features
  • These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
Notes
  • Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
