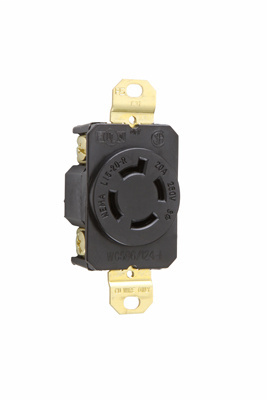

Pass & Seymour L1520-R 20 Amp 250 VAC 3-Phase 3-Pole 4-Wire NEMA L15-20R Impact-Resistant Nylon Locking Single Receptacle

Manufacturer: Legrand / Pass & Seymour | Catalog # L1520R | North Coast Part # 13175

$18.71/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
15 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not available for delivery*
Check your local branch
Turnlok Single Receptacle 4wire 20amp 3phase 250v

Technical Information

Amperage
20 Amp
Applications
Industrial Spec Grade
Blade Dimensions
3.3 in
Conductor Size
4 AWG
Grade
Industrial/Specification
Material
Nylon
Mounting Type
Flush
NEMA
L15-20R
Number of Poles
2 Pole
Number of Wires
3
Size
3.3 in
Type
Single Receptacles
Voltage
250 Volt
Wire Size
4 AWG

Manufacturer Information

Family Brand Name
Pass & Seymour
Sub Brand
Turnlok

General Product Info

Color
Black
Finish
Gloss
GTiN
00785007152050
Product UPC
78500715205
UNSPSC
39121403

Dimensions

Depth
1.19 Inch
Length
3.28 Inch
Width
1.61 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
  • Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
  • Accepts #14 - #10 AWG.
  • Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
  • Side and external screw-pressure-plate back wire capability.
  • Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
  • One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
  • Face color coding by voltage facilitates locating and mating of proper devices.
