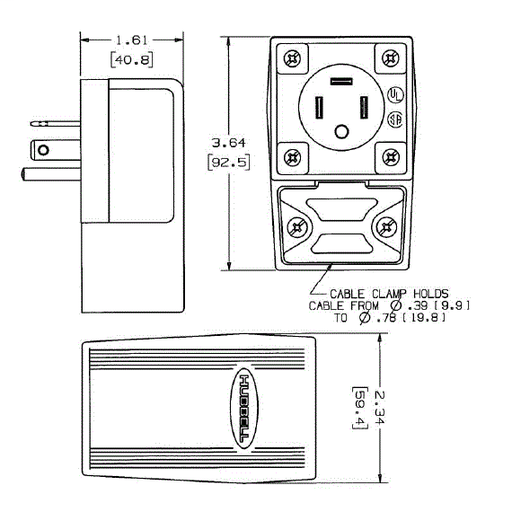

Hubbell HBL8421C 20 Amp 3-Phase 250 VAC 3-Pole 4-Wire NEMA 15-20P Black Nylon Straight Blade Plug

Manufacturer: Hubbell / Kellems | Catalog # HBL8421C | North Coast Part # 132117
$135.99/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Straight Blade Devices, Male Plug, Heavy Duty, Industrial/Commercial Grade, Straight, 3-Pole 4-Wire Grounding, 20A 3 Phase 250V AC, 15-20P, Black, Single Pack.

Technical Information

Amperage
20 Amp
Applications
Industrial/Commercial
Conductor Size
14-10 AWG
Cord Type
Portable
Current
20 Amp
Grounding
Yes
Material
Thermoplastic
Mounting Type
Cord
NEMA
15-20P
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
TC Connection
Terminal Screws
Type
Insulgrip, Standard Sized, Right Angled, 4 Position
Voltage
2,000 Volt
Wattage
5000 Watt
Wire Count
4
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Insulgrip®

General Product Info

12-Digit UPC
783585013299
Color
Black,White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585013299
Product UPC
78358501329
Listings
  • UL Listed to UL498 File E1706
  • CSA Certified to C22.2 No. 42 File 280C
  • NEMA® WD-6 Compliant
Features
  • Industrial heavy duty plug
  • Angled, low profile
  • 4-position assembly
