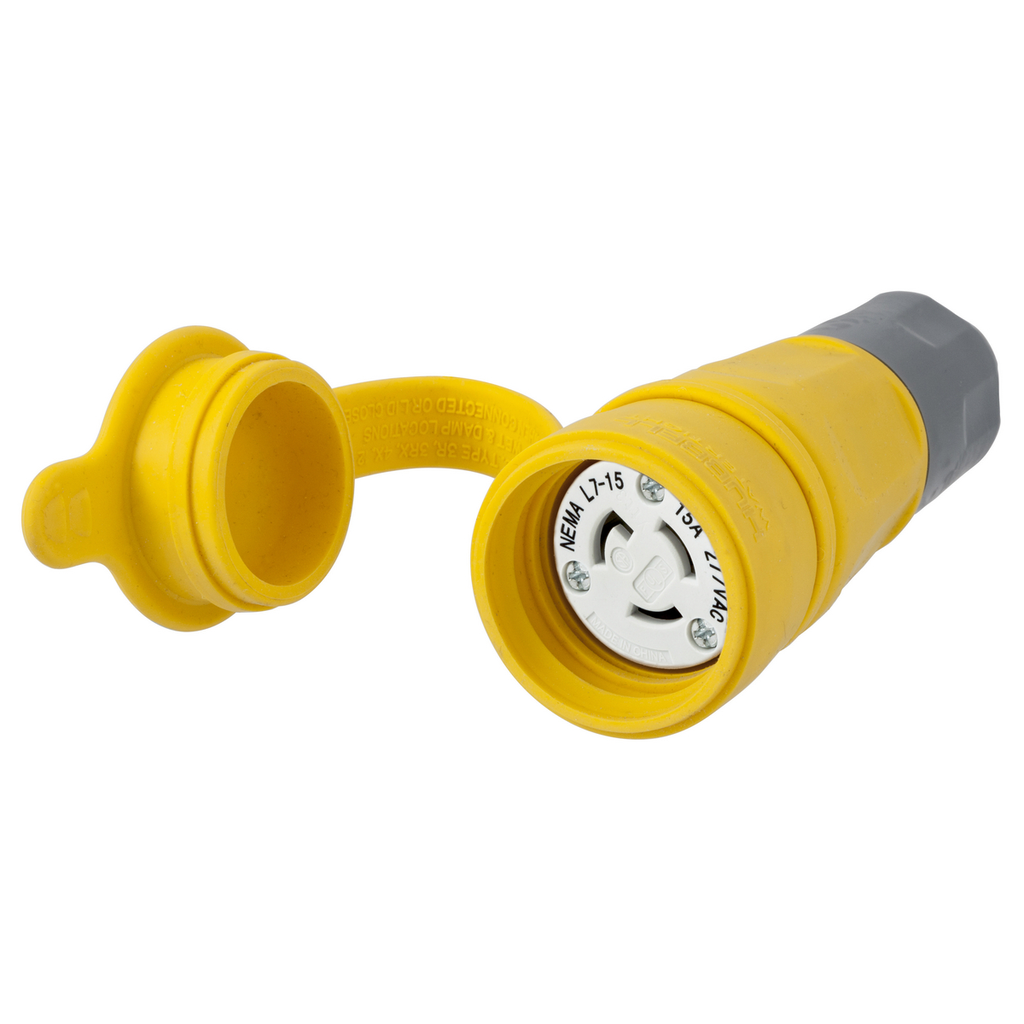

Product image for HWDK HBL25W34 CONN, W/TIGHT, L7-15R
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

HWDK HBL25W34 CONN, W/TIGHT, L7-15R

Manufacturer: Hubbell / Kellems | Catalog # HBL25W34 | North Coast Part # 1327601
$166.32/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page Installation / Instruction Manual
Watertight Devices, Twist-Lock® Connector, 15A, 277V AC, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L7-15R, Yellow

Technical Information

Amperage
15 Amp
Applications
For Industrial, Commercial
Body Material
Thermoplastic Elastomer
Conductor Size
14-12 AWG
Contact Material
Nickel-Plated Brass
Cord Size
0.3 - 0.625 in
Current
15 Amp
Dielectric Strength
2500 VAC
Grounding
Grounding
Material
Composite/Elastomeric
Mounting Type
Cord
NEMA
L7-15R
Number of Conductors
3-Wire Grounding
Number of Poles
2 Pole
Number of Wires
2 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size
1.85 in x 1.85 in x 4.62 in
Standard
ANSI Standards,Meets NEMA WD-1,WD-6
TC Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees C
Type
Connector Body
Voltage
277 Volt
Wire Count
3

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585131313
Color
Yellow
Environmental Conditions
UV-Resistance, Moisture-Resistance
GTiN
00783585131313
Product UPC
78358513131

Dimensions

Height
4.62 Inch
Length
1.85 Inch
Width
1.85 in

Certifications and Compliance

Country of Origin
China
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
