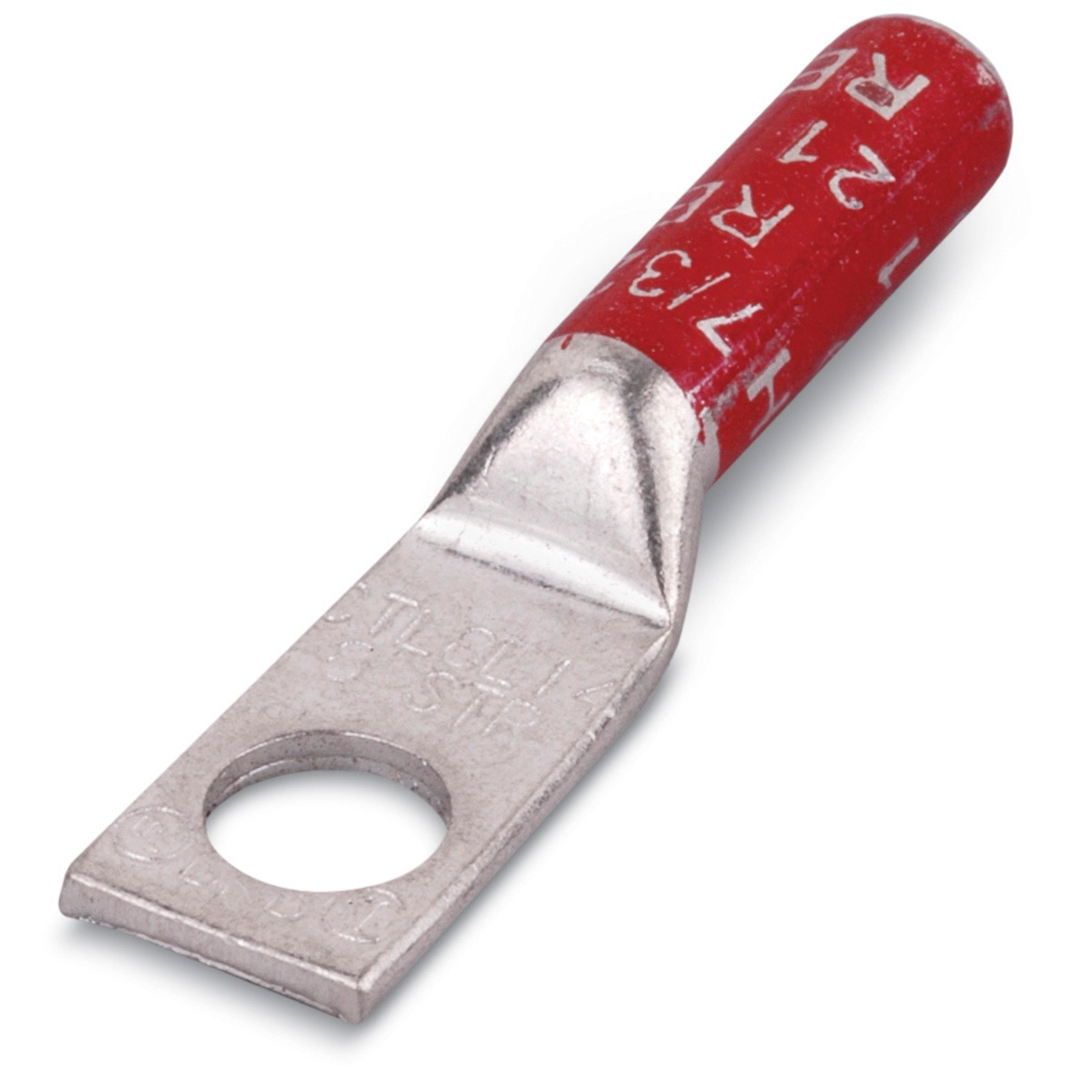

Blackburn CTL8L-14 Compression Terminal

Manufacturer: Thomas & Betts | Catalog # CTL8L-14 | North Coast Part # 132937
$541.27/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
27 available

For Pick Up

at Auburn Closes 3:00pm PT
27 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not in local stock *
Check another branch
Specification Sheet Brochure Product Catalog Page
Copper One-Hole Lug, Long Barrel, Max 35kV, 8 Str. Wire, 1/4 Bolt Size, Tin Plated, Die Color Code Red

Technical Information

Applications
For Medium Voltage Applications
Barrel Length
Long
Barrel Shape
Standard
Barrel Type
Chamfered, Long
Cable Size
8 AWG
Conductor Size
8 AWG
Die Color
Red
Material
Copper
Number of Holes
1 Hole
Number of Studs
1
Standard
UL E9809
Stud Size
1/4 in
Tongue Angle
Straight
Type
Long Barrel
Voltage
35 Volt

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786410354
Color
Red
Finish
Tin Plated
GTiN
00783786410354
Product UPC
78378641035

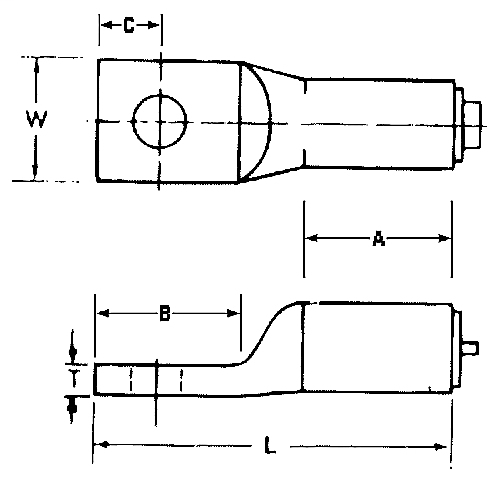

Dimensions

Height
2.3 Inch
Width
2.8 in
Features
  • Color-coded for matching die identification.
  • Specifically chamfered barrel for ease of installation.
  • UL Listed for AWG conductor when installed with Blackburn, Burndy, T&B or Andersons Tools.
  • Made of high-conductivity seamless copper tubing. Tin plated for corrosion resistance.
  • Complies with Subpart 111.60-17 of Federal Register's Coast Guard Electrical Engineering Rules and Regulations.
Certifications
  • CSA
  • UL
Notes
  • For use with copper conductor: AWG, stranded, flexible cable, welding cable and portable cord. Specially designed for inductrial and building applications.
