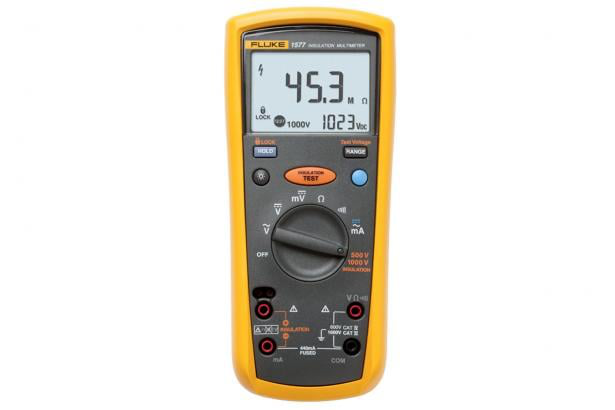

Fluke Electronics FLUKE-1577 1000 Volt Insulation Digital Multimeter

Manufacturer: Fluke | Catalog # FLUKE-1577 | North Coast Part # 132968

$739.99/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 11 to 17 days
Two powerful tools in one. The Fluke 1577 Insulation Multimeter combines a digital insulation tester with a full-featured, true RMS digital multimeter in a single, compact, handheld unit, which provides maximum versatility for both troubleshooting and preventative maintenance. Whether you work on motors, generators, cables, or switch gear, the Fluke 1577 Insulation Multimeter is ideally suited to help you with your tasks and at a cost that is far less than buying the two products.

Technical Information

Accuracy
Voltage DC: (0.09%+2); Voltage AC: (2%+3)
Amperage
400m Amp
Applications
Troubleshooting and preventative maintenance
Enclosure
Hard Plastic
Enclosure Material
Hard Plastic
Operating Temperature
20 To 55 C
Resistance
50 megohm
Storage Temperature
-40 To 60 C
Type
Insulation Multimeter
Voltage
1000 Volt

Manufacturer Information

Family Brand Name
Fluke

General Product Info

GTiN
00095969262965
Product UPC
09596926296
Weight
624 g

Dimensions

Warranty Length
3 yr
Includes
  • Four AA alkaline batteries
  • Remote probe
  • Test leads
  • Quick reference guide
  • Alligator clips
  • CD rom with manual
  • Hard case
Product Overview
  • Whether you work on motors, generators, cables, or switch gear, the Fluke 1587/1577 Insulation Multimeters are ideally suited to help you with your tasks and at a cost that is far less than buying the two products.
  • The Fluke 1587 and 1577 Insulation Multimeters combine a digital insulation tester with a full-featured, true RMS digital multimeter in a single, compact, handheld unit, which provides maximum versatility for both troubleshooting and preventative maintenance.
  • Two powerful tools in one
Key Features
  • Accepts optional Fluke TPAK
  • Auto discharge of capacitive voltage
  • Insulation test voltages 500 V, 1000 V
  • True RMS
  • Resistance (0.1 ? to 50 M?)
  • Continuity
  • Insulation test: 0.1 M? to 600 M?
  • Large display with backlight
  • AC/DC milliamps
  • CAT III 1000V, CAT IV 600V measurement category
  • magnetic hanging system to free your hands for other work
  • Auto power off to save battery power
  • Remote probe, test leads, alligator clips
  • DC millivolts
  • Rugged, utility hard case
  • Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
  • Three-year warranty
  • AC/DC Voltage
