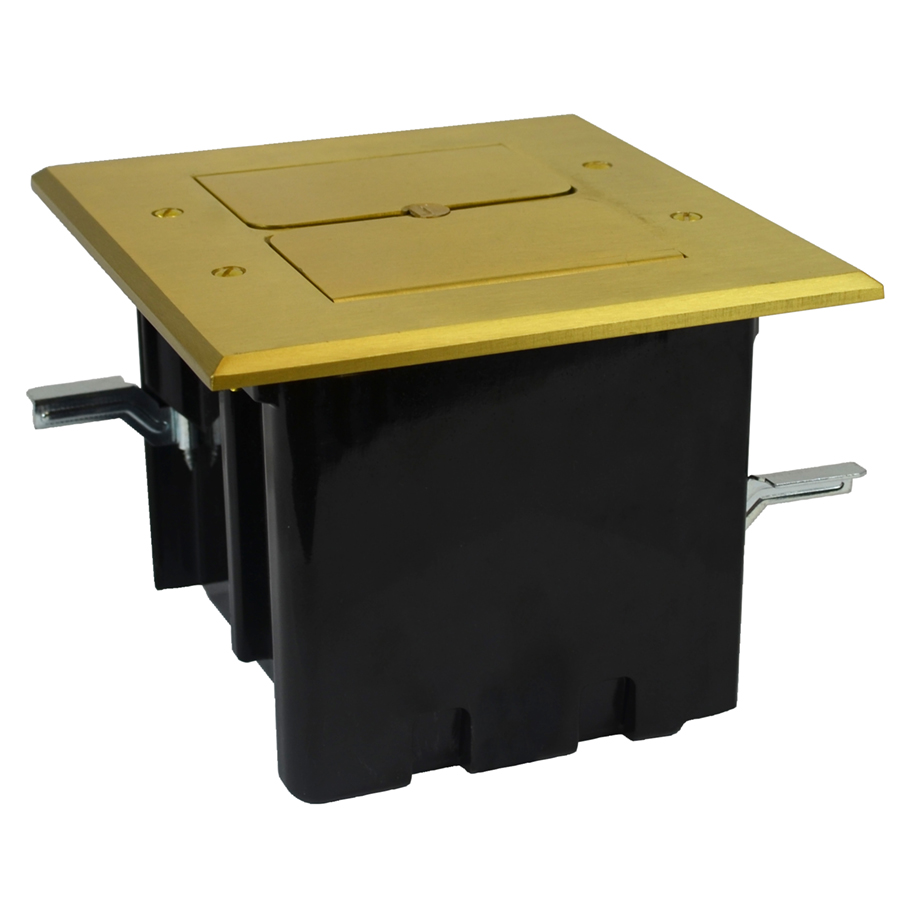

Allied Moulded Products FB-5 44.5 cubic inch 2-Gang Floor Box with Brass Cover for Low Voltage Installation

Manufacturer: Allied Molded Products | Catalog # FB-5 | North Coast Part # 1342170
$17,549.04/c (100 ea)
ea
Order in multiples of 6 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Specification Sheet
44.5 Cu. In. 2-gang floor box assembly with a brass decorative device and LV cover - designed for use in wood floor construction and can be installed with multiple floor substrate materials, meets scrub-water exclusion test, tamper resistant receptacle, simple exterior shape for easy cut-in application - Floor box assembly for residential wood floor cut-in application for use with nonmetallic sheathed cable. Used in areas of the home with large floor space openings where additional electric outlets are required by National Electrical Code to minimize long extension cord runs - Polycarbonate box, brass cover, galvanized steel dust plate, nonmeatallic device with copper terminals and brass ground, closed cell rubber gasket - Size: Box - D=4.056", W=4.498", H=4.335" Cover - D=.222", W=6.0", H=5.625" - Mount with Metal wing brackets/nonmetal flange floor or ceiling compression

Technical Information

Applications
Floor box assembly for residential wood floor cut-in application for use with nonmetallic sheathed cable. Used in areas of the home with large floor space openings where additional electric outlets are required by National Electrical Code to minimize long extension cord runs.
Cable Entry
0.50 in
Insulation Type
Nonconductive Nonmetallic Box & Bare Metal Cover Grounded
Material
Brass
Mounting Type
Metal Wing Brackets/nonmetal Flange Floor Or Ceiling Compression
Number of Gangs
2 Gang
Size
Box - D=4.056", W=4.498", H=4.335" Cover - D=.222", W=6.00", H=5.625"
Standard
UL 514 C
Type
Two-gang floor box assembly with a brass duplex device/low voltage flip-lid cover

Manufacturer Information

Brand
Allied Moulded Products, Inc.

General Product Info

12-Digit UPC
085339990758
Color
Black/Brass
Construction
Cast Cover,Injection Molded Box
GTiN
00085339990758
Product UPC
08533999075

Dimensions

Depth
4.06 Inch
Height
4.34 Inch
Width
4-1/2 in

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
  • FB-5DB
  • FB-5N
  • FB-5CVR
Additional Materials
  • Closed cell rubber gasket
  • Plated carbon steel fasteners
  • Nonmetallic pop-in cable clamp
  • Galvanized steel dust plate with plated carbon steel fasteners
  • Nitrile O-ring
  • FLOOR BOX 714L
  • ANSI / UL514C: File No. QCMZ.E30594
  • Designed for use in wood floor construction and can be installed with multiple floor substrate materials, meets scrub-water exclusion test, one tamper resistant decorative device, provision for an additional device or up to 4 low voltage keystone plugins, and a simple exterior shape for easy cut-in application
  • Floor box assembly for residential wood floor cut-in application for use with nonmetallic sheathed cable.  Used in areas of the home with large floor space openings
