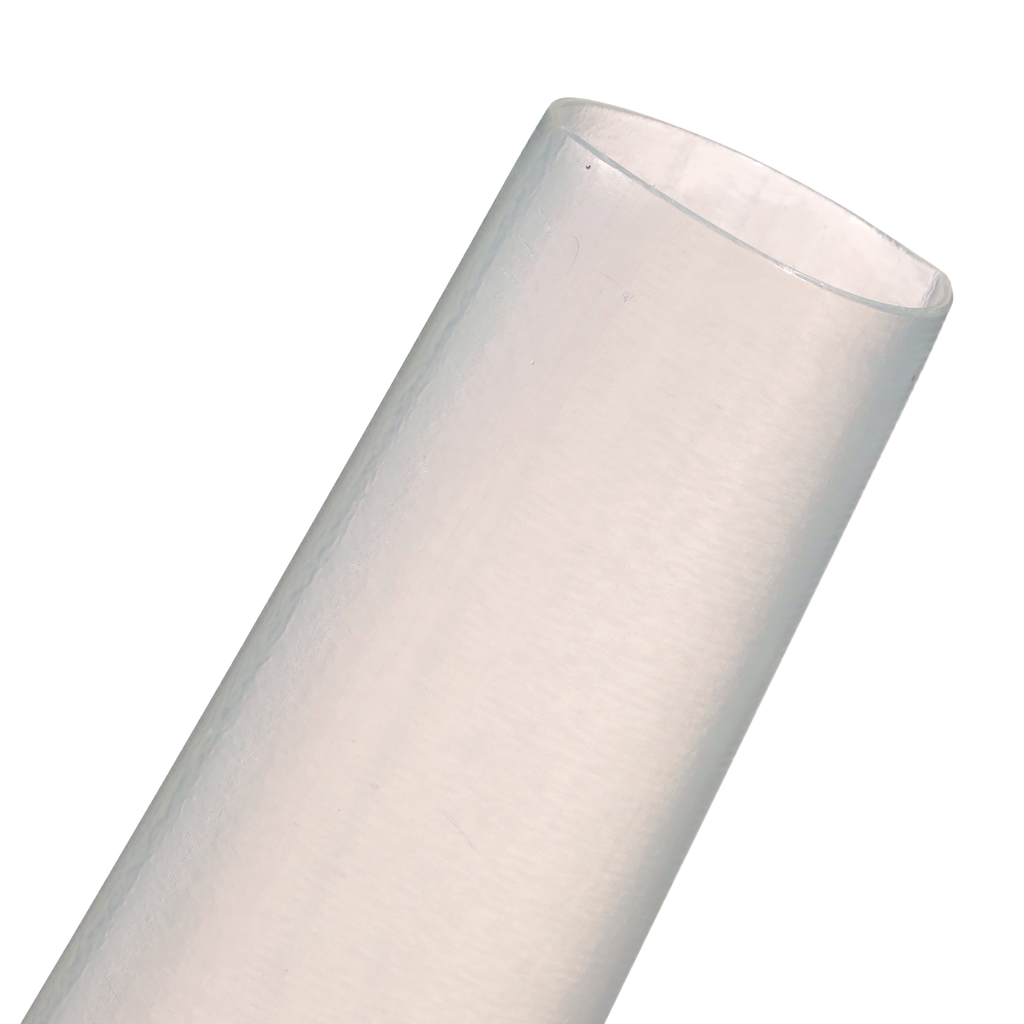

3M 7100088823 3M™ Thin-Wall Heat Sh

Manufacturer: 3M | Catalog # 7100088823 | North Coast Part # 1343128

$38.43/ea
ea
Order in multiples of 24 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
3M™ Heat Shrink Products offer the important advantages of simple installation, excellent performance, and long-term reliability. The materials chosen for these products are specifically developed to meet demanding performance requirements and are manufactured under stringent quality-assurance standards, with many products meeting or exceeding the requirements of most military, commercial, and industrial OEM specifications. Various 3M™ Heat Shrink Products have proven their effectiveness in some of the most demanding environments, including outer space, undersea, and underground. Count on a wide range of high-quality heat shrink tubing products from 3M for insulating, protecting, bundling, harnessing, and wire marking.

Technical Information

Material
Polyolefin
Max Operating Temperature
110.0 degrees C
Operating Temperature
-55 degrees C
Shrink Ratio
3:1
Tensile Strength
2100 lb/in
Type
Flexible Polyolefin Adhesive-Lined

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
051128597606
Color
Transparent
GTiN
00051128597606
Product UPC
05112859760

Dimensions

Length
48 Inch
Outside Diameter
1 in
Overall Length
48.0 in

Certifications and Compliance

Country of Origin
USA
Features

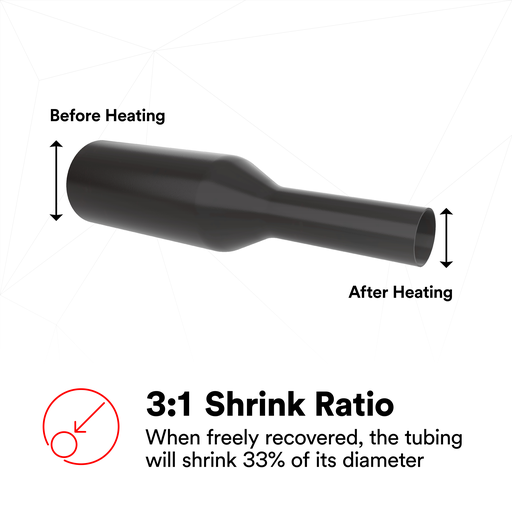

  • SHRINK RATIO: Offers a 3:1 shrink ratio; when freely recovered, the tubing will shrink 33% of its as-supplied diameter
  • DUAL-WALL DESIGN: A durable, flexible polyolefin outer wall resists abrasions while a meltable inner wall keeps out moisture
  • A VERSATILE OPTION: Flame-retardant, water-resistant, and rated for 600 V applications
  • OPERATING RANGE: This tubing functions in a temperature range of -55110 C (-67230 F), with a shrinking temperature minimum of 121 C (250 F)
  • IDEAL FOR A VARIETY OF APPLICATIONS: Offers protection for automotive, truck, electronic components, wire splices, wire bundles, and harness breakouts

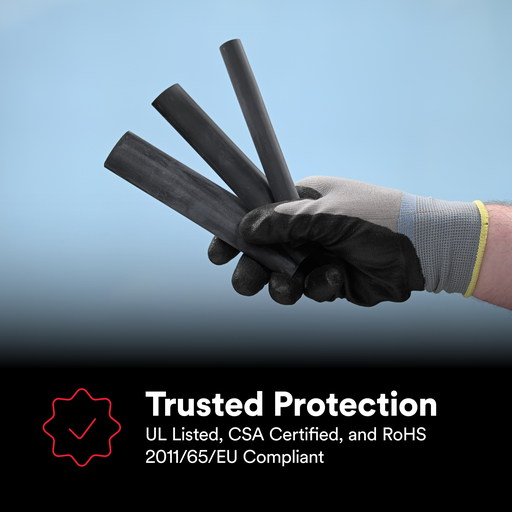

  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
