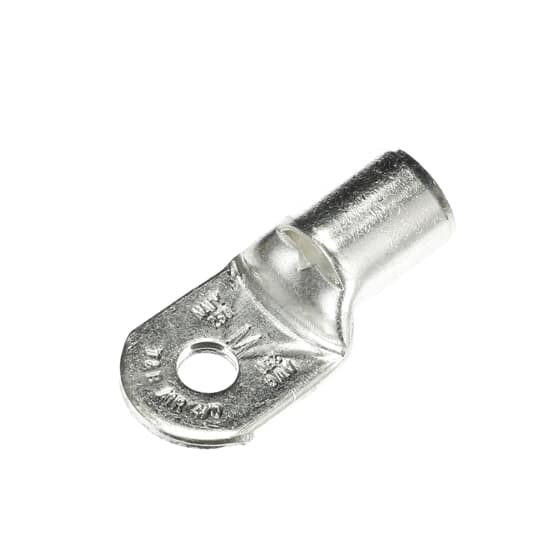

Product image for ABB M250-38 NON-INS - TUB RING TERM
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

ABB M250-38 NON-INS - TUB RING TERM

Manufacturer: Thomas & Betts | Catalog # M250-38 | North Coast Part # 134357
$3,191.60/c (100 ea)
ea
Order in multiples of 5 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Non-Insulated Tubular Ring Terminal, Length 2.40 Inches, Width 1.12 Inches, Bolt Hole 3/8 Inch, Wire Range 4/0AN-250kcmil, Copper, Tin Plated, 5 Pack

Technical Information

Applications
For Military Applications
Barrel Type
Brazed Seam, Serrated
Conductor Size
250 kcmil
Flamability Class
Rated V-0 Per UL94
Insulation Material
Vinyl
Insulation Type
Non-Insulated - Tubular
Material
Copper
Standard
UL E9809
Stud Size
3/8 in
Temperature Rating
150 degrees C
Terminal Type
M
Type
Non-Insulated, Large, Tubular
Voltage
600 Volt
Wire Size
250 kcmil

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210803722
Color
Metallic
Finish
Electro Tin Plated
GTiN
00786210803722
Product UPC
78621080372

Dimensions

Height
3 Inch
Thickness
.07 in
Width
1.3 in
Certifications
  • CSA
  • UL
Notes
  • Not available on Mylar Tape.
Features
  • These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire).
