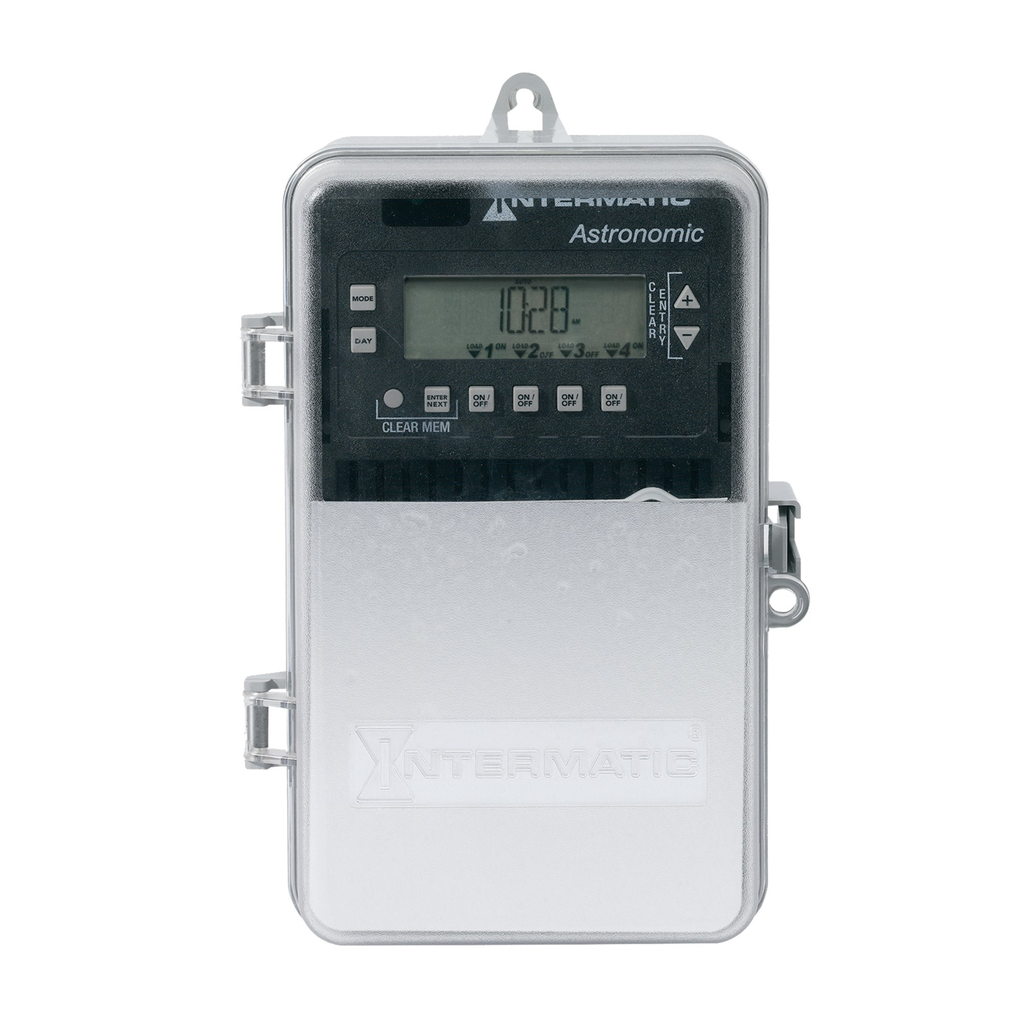

Product image for Intermatic ET2845CP T/S-ELEC,4CH,3R PLASTIC ENCL
Image thumbnail 0
Image thumbnail 1
Email

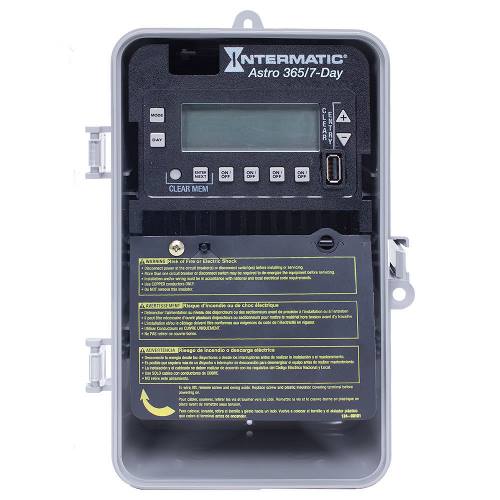

Intermatic ET2845CP T/S-ELEC,4CH,3R PLASTIC ENCL

Manufacturer: Intermatic | Catalog # ET2845CP | North Coast Part # 1347175
$1,279.18/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Specification Sheet
The ET2000 Series offers an easy-to-use user interface while still allowing to-the-minute scheduling capabilities for nearly any application. This series provides 50 holiday blocks with independent scheduling to ensure the loads are always in the proper ON/OFF state. This series also includes 96 ON/OFF events for even the most demanding schedules. The scheduling capabilities, configurable outputs, and a 100-hour backup without the need of batteries, make this series ideal for nearly any application.

Technical Information

Action
SPST
Amperage
30 Amp
Applications
Machinery & Pump Controls,Outdoor Lighting Control,Timing/Scheduling ON/OFF
Conductor Size
14-8 AWG
Connection Type
Wire Lead
Contact Configuration
1 NO
Contact Rating
30 AMP @ 120/240 VAC, 20 AMP @ 28 VDC (Resistive), 30 AMP @ 120/240 VAC (Inductive), 5 AMP @ 120/240 VAC (Tungsten), 20 AMP @ 120 - 277 VAC, 10 AMP @ 120/277 VAC (Ballast)
Enclosure
Type 3R Plastic
Frequency
50/60 Hz
Max Operating Temperature
104 degrees F
Min Operating Temperature
-40 degrees C
Mounting Type
Wall Mount
Number of Circuits
4
Number of Poles
1 Pole
Operating Temperature
155 degrees F
Power Consumption
7 W
Standard
Meet Title 20/24 Compliance,UL Rating
Switch Type
4xSPST, 2xDPST Or Pulse
TC Connection
Wire Lead
Type
Astronomic Electronic
Voltage
120-277 VAC
Wire Size
18-10 AWG

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275147751
Color
Gray
GTiN
00078275147751
Product UPC
07827514775

Dimensions

Depth
4 Inch
Height
10 Inch
Warranty Length
2 yr
Width
6.5 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Lead
Country of Origin
Mexico
Features
  • 100-hour supercapacitor eliminates the need for batteries
  • Up to 96 set points or events
  • Up to 50 holiday blocks with schedule capabilities
  • Automatic input voltage selection from 120 to 277 VAC, 60 Hz
  • Additional mode of operation turns the ON/OFF buttons into 2-hour overrides
  • Configurable outputs allow the control of various voltages and applications
  • Relays incorporate zero-crossing technology to extend the life of the control
  • Non-volatile EEPROM memory protects programming indefinitely
  • LED compatible
  • USB port makes transferring and saving of schedules easy
