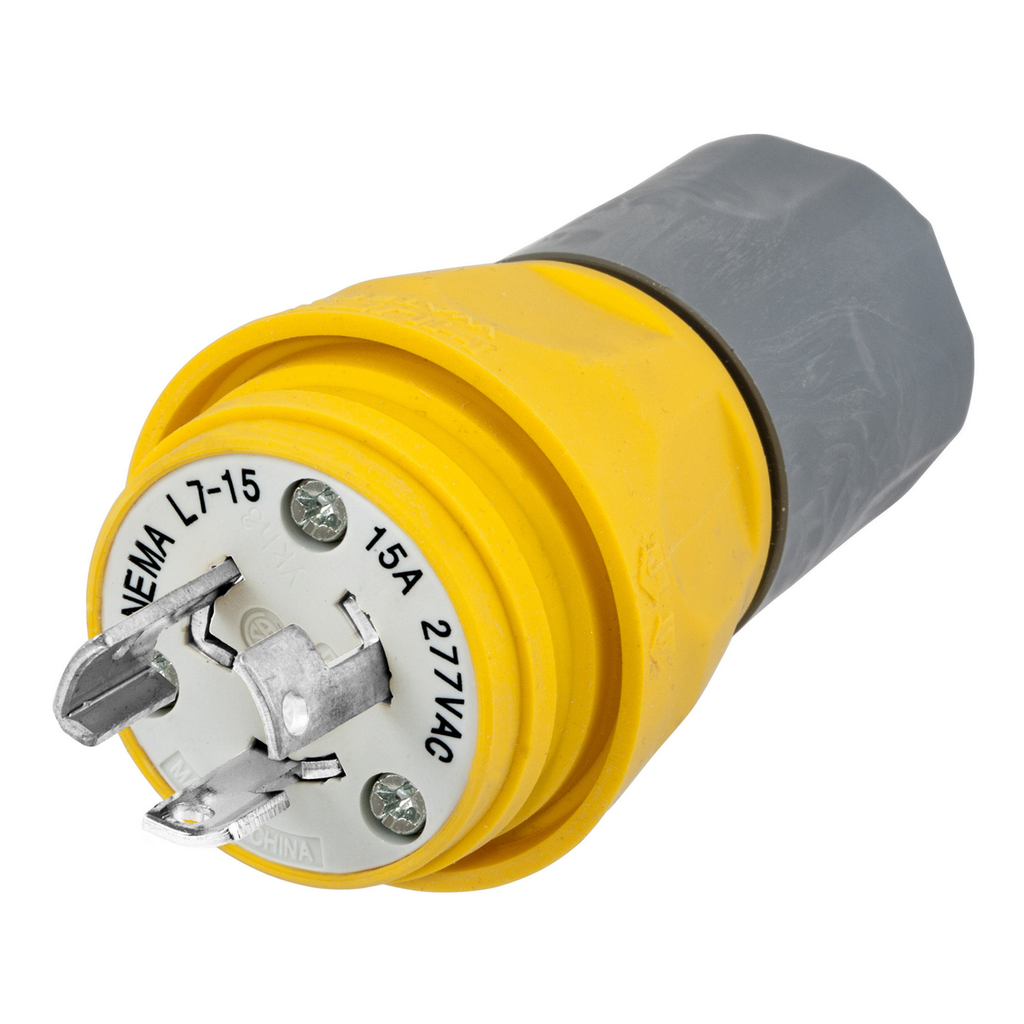

Product image for HWDK HBL24W34 PLUG, W/TIGHT, L7-15P
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

HWDK HBL24W34 PLUG, W/TIGHT, L7-15P

Manufacturer: Hubbell / Kellems | Catalog # HBL24W34 | North Coast Part # 1352965
$115.06/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page Installation / Instruction Manual

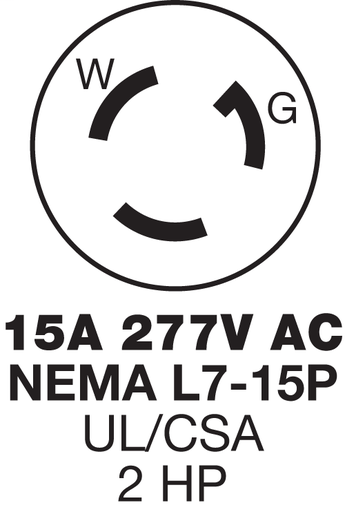

Watertight Devices, Twist-Lock® Plug, 15A, 277V AC, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L7-15P, Yellow

Technical Information

Amperage
15 Amp
Applications
For Industrial, Commercial
Body Material
Thermoplastic Elastomer
Conductor Size
16/3-10/3 AWG, 18/3-12/3 AWG
Contact Material
Nickel-Plated Brass
Cord Size
0.3 - 0.625 in
Cord Type
All Portable, SJ, S
Current
15 Amp
Material
Composite/Elastomeric
Mounting Type
Cord
NEMA
L7-15P
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass

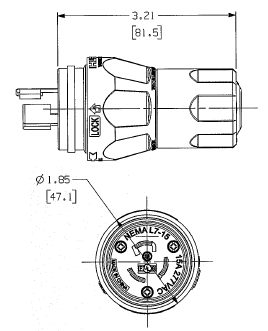

Size
1.85 in x 1.85 in x 3.21 in
Standard
ANSI Standards,Meets NEMA WD-1,WD-6
TC Connection
Screw Terminals
Temperature Rating
-40 degrees C to 60 degrees C
Type
Plugs
Voltage
277 Volt
Wire Count
3
Wire Size
16/3 SJ-10/3 SJ, 18/3 S-12/3 S

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585131238
Color
Yellow
Environmental Conditions
Watertight
GTiN
00783585131238
Product UPC
78358513123

Dimensions

Height
3.21 Inch
Length
1.85 Inch
Width
1.85 in

Certifications and Compliance

Country of Origin
China
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
