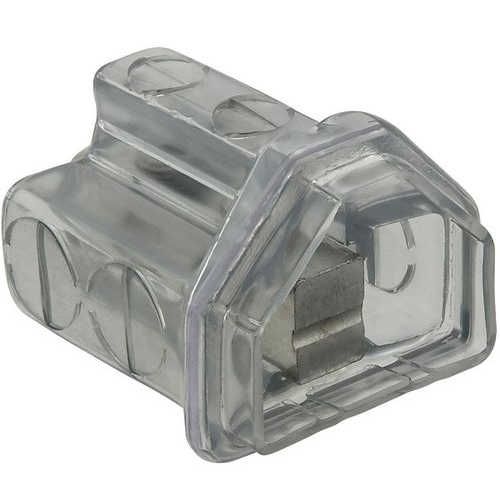

Ilsco PCT-6-4 Cleartap Insulated Aluminum Multi-Tap Connector, Dual Rated, Conductor Range 4-14, 6 Ports, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # PCT-6-4 | North Coast Part # 135749
$47.69/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Cleartap Insulated Multi-Tap Connector, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 4 Str - 14 Str and 10 Sol - 14 Sol, Contains DE-OX®, 6 conductors, 6 ports/wireways, Plastisol insulation, Drive Type Main Slotted, rated for 600 V, primary color Clear, 1 poles,

Technical Information

Applications
Tap Connector
Conductor Size
14-4 AWG
Conductor Type
Aluminum/Copper
Material
Aluminum
Number of Conductors
6
Standard
CSA File Number: LR-29601,UL File Number: E6207,UL Specifications: UL 486A-B
Temperature Rating
-45 to 90 degrees C
Type
PCT, Insulated
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearTap®

General Product Info

12-Digit UPC
783669700343
Color
Clear
GTiN
00783669700343
Product UPC
78366970034

Dimensions

Height
1.430 in
Length
3.460 in
Width
1.570 in
