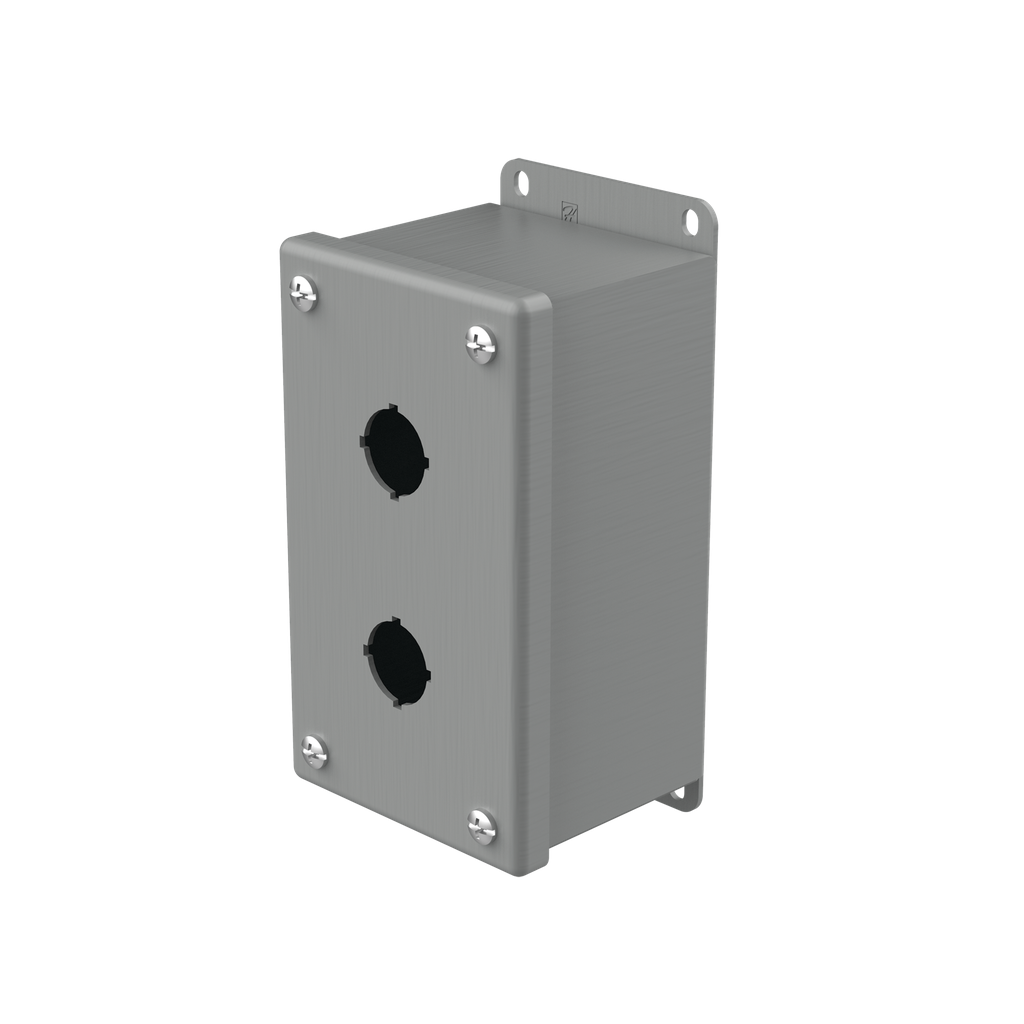

Product image for Hoffman E2PBG Pushbutton Enclosures, Type 12, 2PB x 22.5mm, Gray, Steel
Email

Hoffman E2PBG Pushbutton Enclosures, Type 12, 2PB x 22.5mm, Gray, Steel

Manufacturer: nVent Hoffman | Catalog # E2PBG | North Coast Part # 13635
$151.79/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
These pushbutton enclosures are designed to hold 30.5-mm or 22.5-mm pushbuttons and switches.

Technical Information

Applications
Controls and Drives
Color Coding
ANSI 61
Cover Type
Screw
Gauge
14 and 16
Material
Steel
Number of Holes
2 Hole
Size
2PB x 22.5mm
Standard
CSA File Number 42186: Type 12,CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997,IEC 60529, IP65,NEMA/EEMAC Type 12, 13,UL 508A Listed; Type 12, 13; File No. E61997
Type
2 Holes

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510589905
Color
Gray
Finish
Powder Coated
GTiN
00783510589905
Product UPC
78351058990
Used With
30.5 mm or 22.5 mm Pushbuttons and Switches
Weight
1.8 lb

Dimensions

Depth
70 mm
Height
146 mm
Hole Size
22.5 mm
Length
6-3/4 Inch
Thickness
1.52 mm
Width
83 mm
Features
  • Seams continuously welded and ground smooth
  • Captivated cover screws thread into sealed wells
  • Bonding provision on cover
  • Grounding stud on body
  • Oil-resistant gasket
  • Factory stamped 4-way pushbutton holes
  • Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring
  • External welded-on mounting brackets for easy installation
  • 30.5-mm or 22.5-mm size holes
