Thomas & Betts RA18-10 22 to 16 AWG #10 Stud Red Electrotinned Copper Nylon Insulated Ring Terminal

Manufacturer: Thomas & Betts | Catalog # RA18-10 | North Coast Part # 13682

$154.04/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Adding...
Log in or register to view your price, purchase history, and more!
500 available

For Delivery

Order by Wednesday 4:00pm PT for delivery Thursday
Out of stock, call for availability

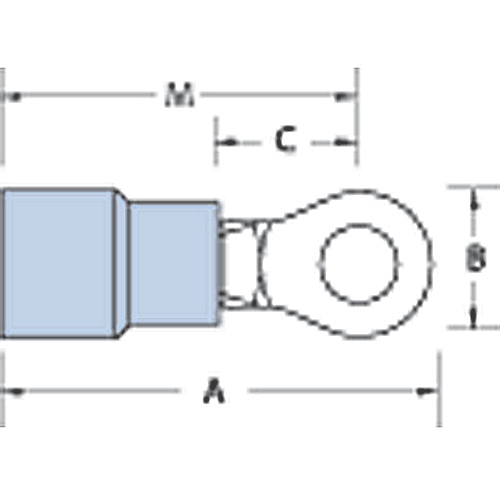

Nylon Insulated Ring Terminal, Length .89 Inches, Width .31 Inches, Maximum Insulation .136, Bolt Hole #10, Wire Range #22-#16 AWG, Color Red, Tin Plated

Technical Information

Conductor Size
22-16 AWG
Flamability Class
Rated V-2 Per UL94
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Stud Size
#10
Temperature Rating
105 C
Terminal Type
RA
Type
Long Sleeve
Voltage
600 Volt
Wire Size
22-16 AWG

Manufacturer Information

Family Brand Name
Thomas & Betts
Sub Brand
Sta-Kon

General Product Info

Color
Red
Finish
Electro Tin-Plated
GTiN
05414363131908
Product UPC
78621080391

Dimensions

Height
3 Inch
Thickness
.03 in
Width
1.1 in
