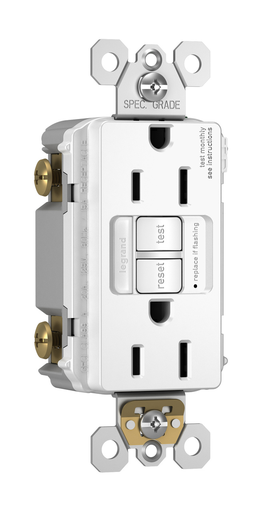

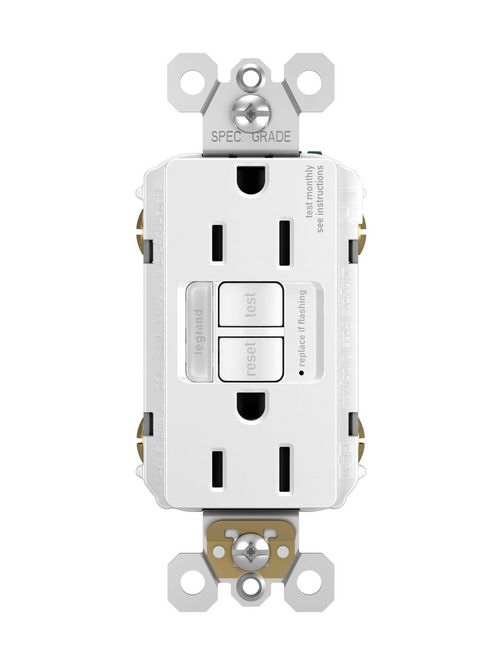

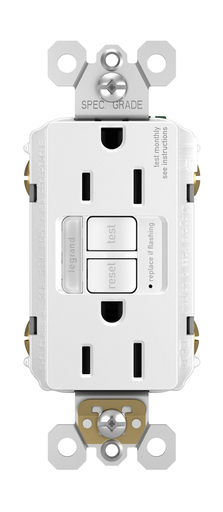

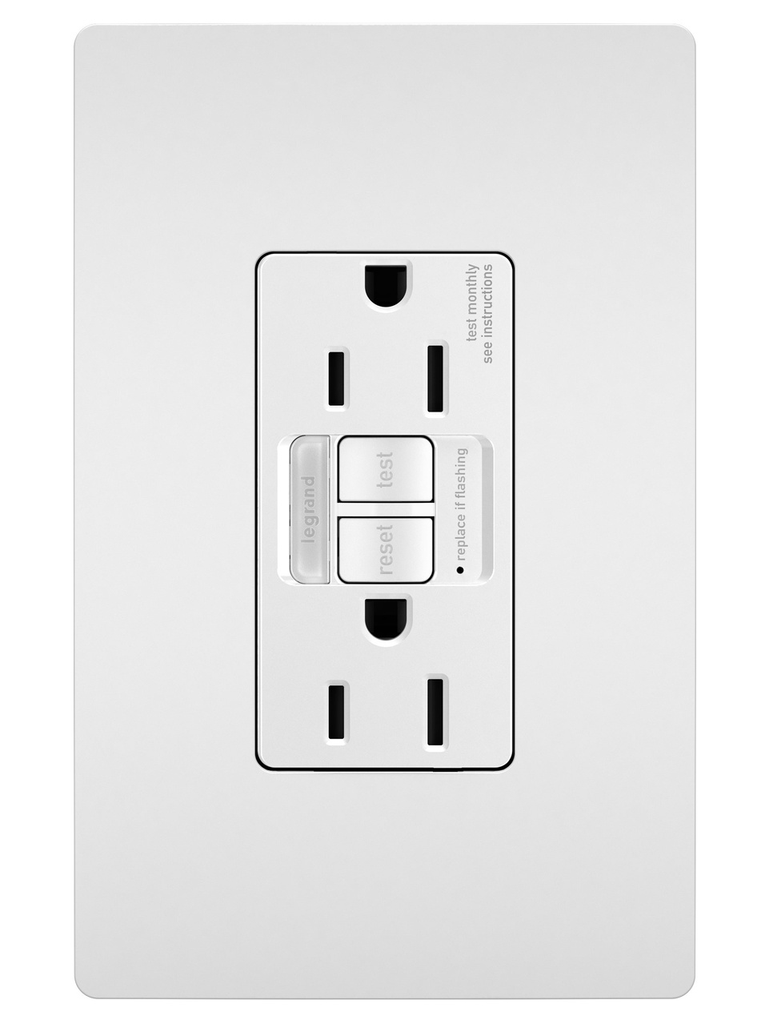

Pass & Seymour 1597NTLTRW Combination Tamper-Resistant 15A Self-Test Night Light/GFCI - White

Manufacturer: Legrand / Pass & Seymour | Catalog # 1597NTLTRW | North Coast Part # 1377723
$76.37/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Opens Friday 5:00am PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Ideal for replacing outlets by kitchen or bathroom sinks, this combination device from the radiant® Collection includes a tamper-resistant GFCI outlet paired with a sealed, built-in LED light which automatically turns on in the dark for easier nighttime navigation. Designed for safety, this self-testing GFCI outlet complies with National Electrical Code and makes trips easier to recognize and fix than GFCI breaker alternatives, thanks to an indicator light and accessible reset button right on the outlet. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.

Technical Information

Amperage
15 Amp
Applications
For Industrial, Healthcare, Education, Institutional, Retail, Office, Hospitality/Lodging and Multiple Dwelling
Conductor Size
14-10 AWG
Connection Type
Back Wire
Contact Material
0.03 in Brass
Dielectric Strength
1500 VAC
Grade
Specification
Material
Nylon
Mounting Type
Box
NEMA
5-15R
Number of Gangs
1 Gang
Number of Poles
2 Pole
Number of Wires
3 Wire
Outlet Type
GFCI,Indoor,Residential,Self-Test,Tamper-Resistant
Temperature Rating
-35 degrees C to 66 degrees C
Type
Self-Test, GFCI
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
radiant

General Product Info

12-Digit UPC
785007127690
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
GTiN
00785007127690
Product UPC
78500712769

Dimensions

Depth
1.03 Inch
Height
4.2 Inch
Warranty Length
1 yr
Width
1.73 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Certifications
  • cULus Listed
Features
  • Replaces any standard outlet with ease, in as little as 10 minutes.
  • Protects against shock caused by ground-fault occurrences. Unlike breaker alternatives, GFCI outlets make it easier to fix trips with a convenient reset button on the outlet.
  • Hidden sensor controls night light based on ambient light, automatically turning on when it is dark.
  • Features durable, high-impact resistant thermoplastic construction.
  • Protects children with a patented tamper-resistant shutter system that prevents improper insertion of foreign objects, complete with \"\"invisi-shutters\"\" for an invisible effect.
  • More color options available to fit any style, including finishes to match current hardware and lighting trends.
  • Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
  • 20 Amp feed-thru capacity
