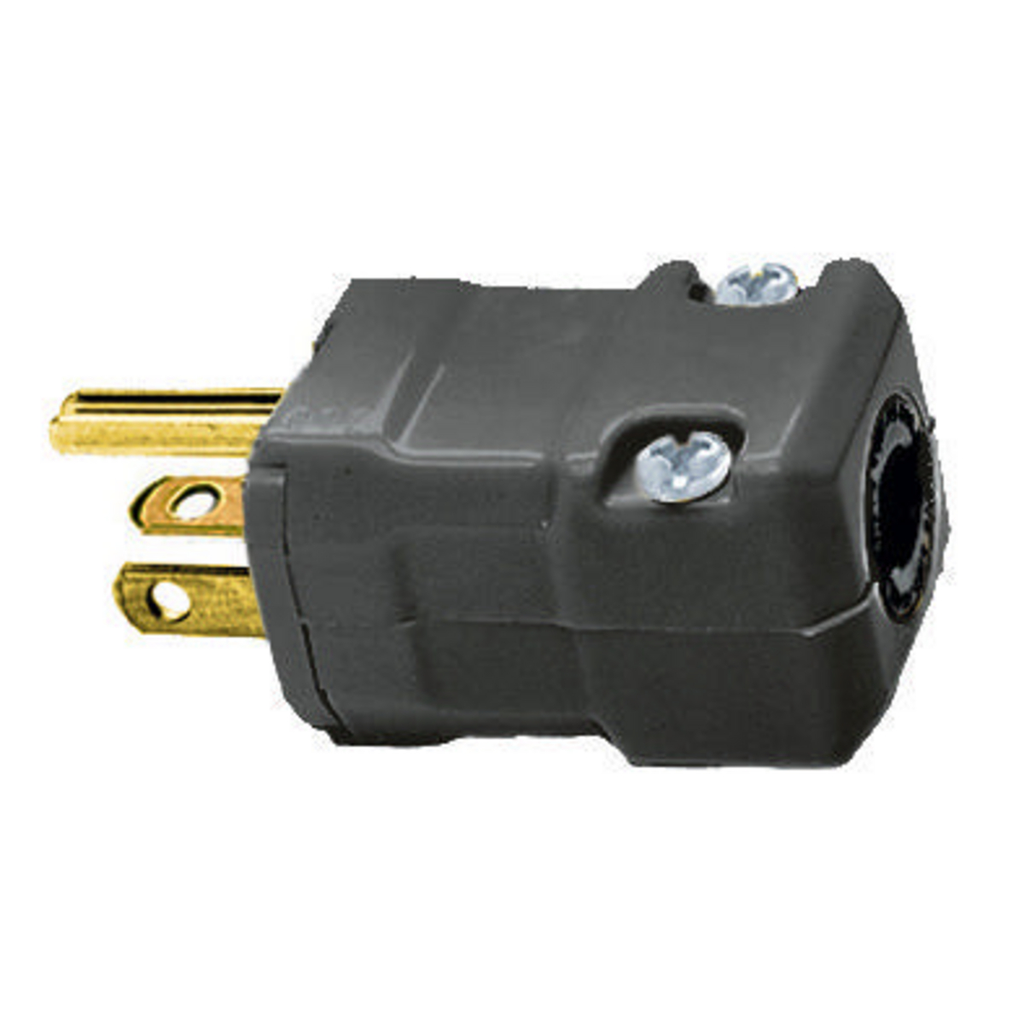

Product image for Hubbell HBL5364VBK VALISE Plug, 20A 125V, 5-20P, BK
Image thumbnail 0
Image thumbnail 1
Email

Hubbell HBL5364VBK VALISE Plug, 20A 125V, 5-20P, BK

Manufacturer: Hubbell / Kellems | Catalog # HBL5364VBK | North Coast Part # 13845
$37.28/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Male Plug, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 20A 125V, 5-20P, Black, Single Pack

Technical Information

Amperage
20 Amp
Applications
Industrial/Commercial
Conductor Size
12-10 AWG
Cord Type
All Portable
Current
20 Amp
Grounding
Grounding
Horsepower
1 hp
Material
Composite
Mounting Type
Cord
NEMA
5-20P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
C22.2 No 42 File 280C,CSA,NEMA® WD-6,UL,UL498 File E1706
Style
Standard
TC Connection
Terminal Screws
Type
Industrial/Commercial Grade
Voltage
125 Volt
Wattage
2000 Watt
Wire Count
3
Wire Size
18-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Valise®

General Product Info

12-Digit UPC
783585019222
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585019222
Product Series
Valise
Product UPC
78358501922
Weight
0.15 lb

Dimensions

Height
1.6 Inch
Length
2.91 Inch
Width
1.660 in

Certifications and Compliance

Country of Origin
USA
Features
  • Hinged one piece body design for easy assembly
  • Powerful, offsetting cord grips clamp on individual conductors
  • Assembly screws are captive and will not fall out while wiring
