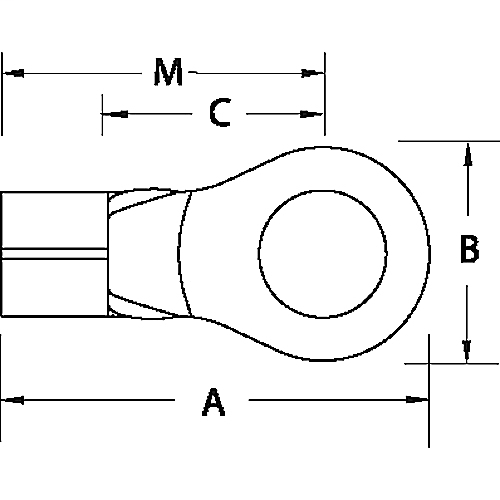

Image thumbnail 2
Email

Thomas & Betts D8-10 #8 AWG Wire Range #10 Bolt Hole Non-Insulated Brazed Seam Metallic Ring Terminal

Manufacturer: Thomas & Betts | Catalog # D8-10 | North Coast Part # 138775
$490.06/c (100 ea)
ea
Order in multiples of 25 (pack qty)
Log in or register to view your price, purchase history, and more!
75 available

For Pick Up

at Auburn Closes 3:00pm PT
75 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not in local stock *
Check another branch
Specification Sheet
Non-Insulated Large Brazed Seam Ring Terminal, Length 1.09 Inches, Width .42 Inches, Bolt Hole #10, Wire Range #8 AWG, Copper, Tin Plated

Technical Information

Conductor Size
8 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Type
Non-Insulated - Brazed Seam
Material
Copper
Stud Size
#10
Temperature Rating
150 degrees C
Terminal Type
D
Type
Short Sleeve
Voltage
600 Volt
Wire Size
8 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210803531
Color
Metallic
Finish
Tin Plated
GTiN
05414363077275
Product UPC
78621080353
Used With
Round Conductors

Dimensions

Height
2.9 Inch
Thickness
.06 in
Width
1.1 in
Certifications
  • UL
  • CSA
Notes
  • Not available on Mylar Tape.
Features
  • These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
