INS NYL RING TERM 22-16 BLT 3/8 RED

Manufacturer: Thomas & Betts | Catalog # RA18-38 | North Coast Part # 13930
$361.74 /c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
200 available

For Pick Up

at Auburn Closes 4:00PM PT
200 available

For Delivery

Order by Wednesday 4:00pm PT for delivery Thursday
Not in local stock *
Check another branch
Specification Sheet

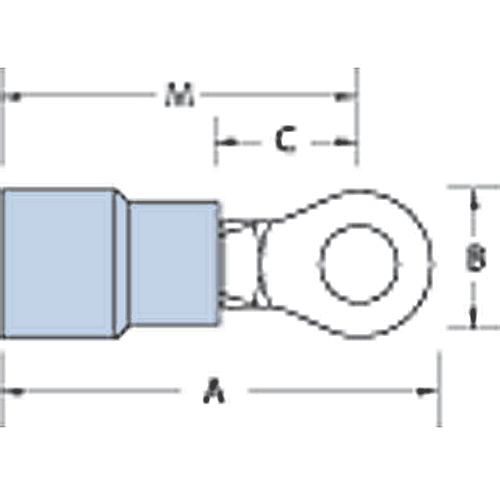

Nylon Insulated Ring Terminal, Length 1.20 Inches, Width .53 Inches, Maximum Insulation .136, Bolt Hole 3/8 Inch, Wire Range #22-#16 AWG, Color Red, Tin Plated

Technical Information

Conductor Size
22-16 AWG
Flamability Class
Rated V-2 Per UL94
Insulation Material
PVC
Insulation Type
Insulated Nylon
Material
Copper
Stud Size
3/8 in
Temperature Rating
105 degrees C
Terminal Type
RA
Type
Long Sleeve
Voltage
600 Volt
Wire Size
22-16 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210803968
Color
Red
Finish
Electro Tin Plated
GTiN
05414363157540
Product UPC
78621080396
Used With
Round Conductors

Dimensions

Height
3 Inch
Thickness
.03 in
Width
1.3 in
Certifications
  • UL
  • CSA
Features
  • Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep.
