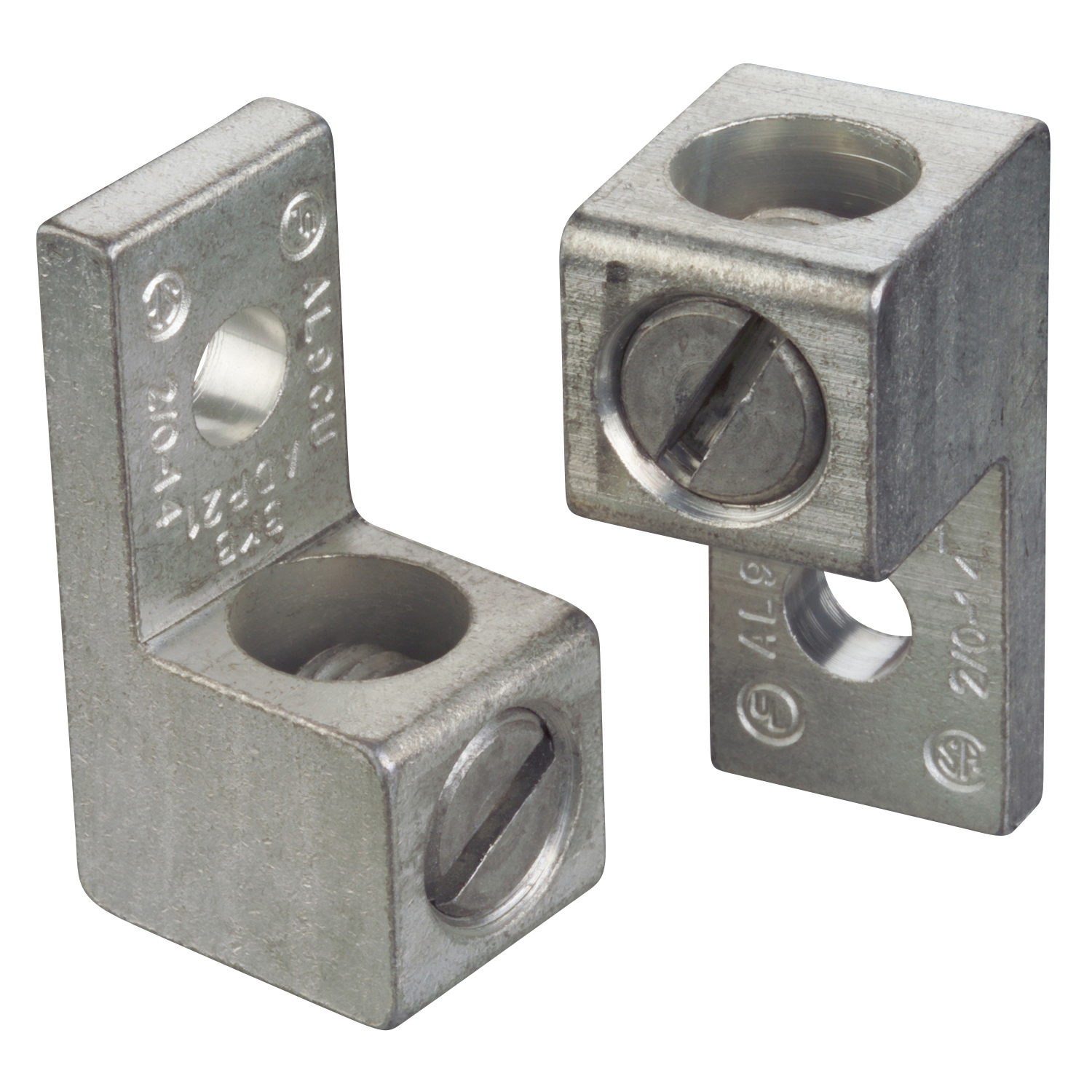

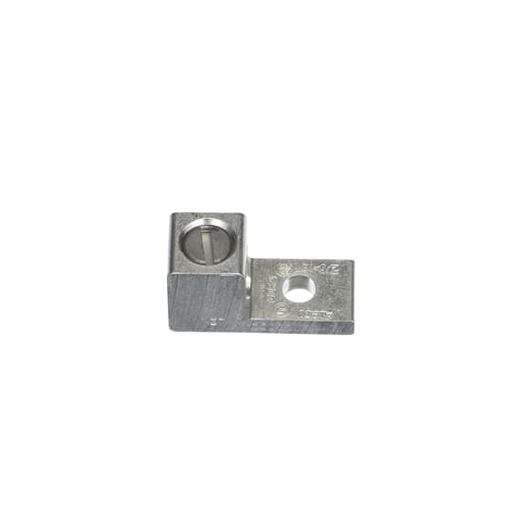

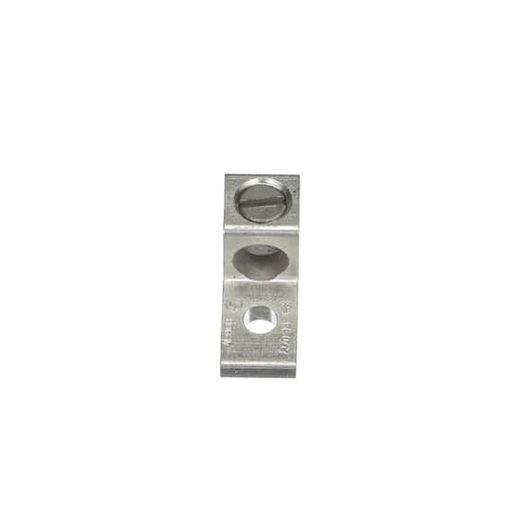

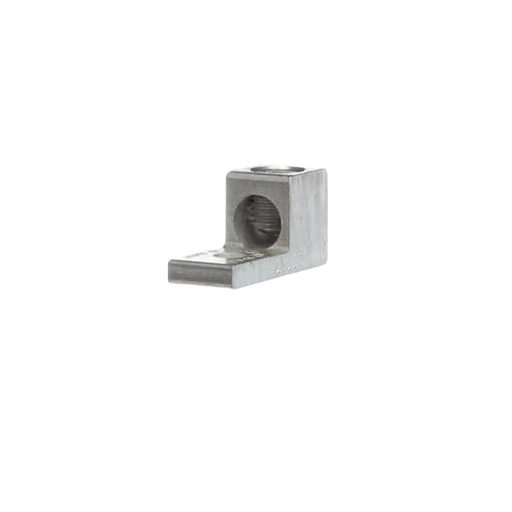

Blackburn ADR21 Dual-Rated Single-Conductor, One-Hole Mount Lug, #14 - 2/0 Str

Manufacturer: Thomas & Betts / Blackburn | Catalog # ADR21 | North Coast Part # 139999
$1,024.56/c (100 ea)
ea
Order in multiples of 25 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page
Type ADR-ALCUL Single-Conductor, One-Hole Mount, Conductor Range 14 AWG-2/0 Str, Length 1-15/32 Inches, Width 5/8 Inch, Height 25/32 Inch, 1/4 Inch Bolt Hole, Slotted Screw, Tin Plated

Technical Information

Bolt Size
1/4 in
Conductor Size
14-2/0 AWG
Conductor Type
Aluminum and Copper
Insulated?
No
Material
Aluminum
Number of Conductors
1
Standard
UL E9809
Type
Dual-Rated

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786610082
Finish
Tin Plated
GTiN
05415022348392
Product UPC
78378661008

Dimensions

Height
25/32 Inch
Length
1-15/32 Inch
Width
5/8 in
Features
  • Easy Installation - no special tools required.
Notes
  • UL 486B tested, AL9CU rated
  • Slotted screw on lugs up throug 2/0 Str.
