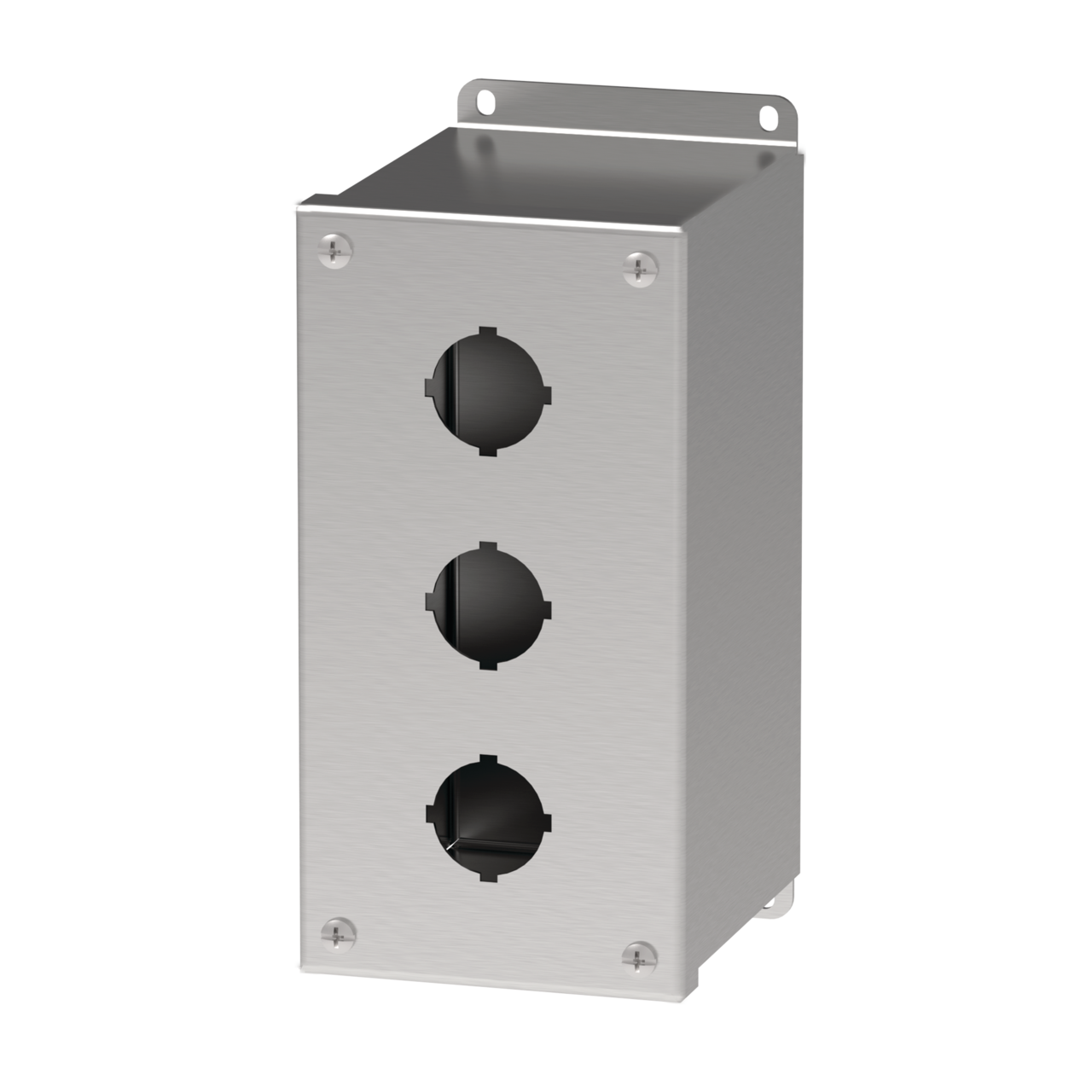

Product image for Hoffman E3PBXSS Extra-Deep 30.5-mm Pushbutton Enclosures, Type 4X, 3PB x 30.5mm, SS Type 304
Image thumbnail 0
Image thumbnail 1
Email

Hoffman E3PBXSS Extra-Deep 30.5-mm Pushbutton Enclosures, Type 4X, 3PB x 30.5mm, SS Type 304

Manufacturer: nVent Hoffman | Catalog # E3PBXSS | North Coast Part # 140193
$687.13/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Designed to house 30.5-mm oil-tight pushbuttons, switches and pilot lights. Enclosures provide protection against dirt, dust, oil and water. Extra-deep design accommodates additional contact blocks for pushbuttons. See Mild Steel chapter for related mild steel enclosures.

Technical Information

Applications
Provide Protection Against Dirt, Dust, Oil and Water
Cover Type
Screw
Gauge
14
Material
Stainless Steel
Number of Holes
3 Hole
Size
3PB x 30.5mm
Standard
12,13,4X,CSA File Number 42186: Type 4,CUL Listed Per CSA C22.2 No 94,File Number E61997,IEC 60529,IP66,NEMA/EEMAC Type 4X,Type 4,UL 508A Listed
Type
3 Holes

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510593704
Color
Stainless Steel
Finish
Brushed
GTiN
00783510593704
Product UPC
78351059370
Used With
30.5 mm Oil-Tight Pushbuttons, Switches and Pilot Lights
Weight
4.1 lb

Dimensions

Depth
121 mm
Height
203 mm
Length
9 Inch
Thickness
1.9 mm
Width
102 mm
Features
  • Extra-deep design accommodates additional contact blocks for pushbuttons.
  • Seams continuously welded and ground smooth
  • Captivated cover screws thread into sealed wells
  • Bonding provision on door; grounding nut on body
  • 4-way pushbutton holes accept all brands of oil-tight pushbuttons, switches and pilot lights
  • Enclosures 6.00 x 4.00 x 4.75 in. (152 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
  • Oil-resistant gasket
