Thomas & Betts 10RC-14 Vinyl-Insulated Ring Terminal - #12-10, 1/4"bolt

Manufacturer: Thomas & Betts | Catalog # 10RC-14 | North Coast Part # 141311
$300.92/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
450 available

For Pick Up

at Auburn Closes 3:00pm PT
450 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not in local stock *
Check another branch
Specification Sheet

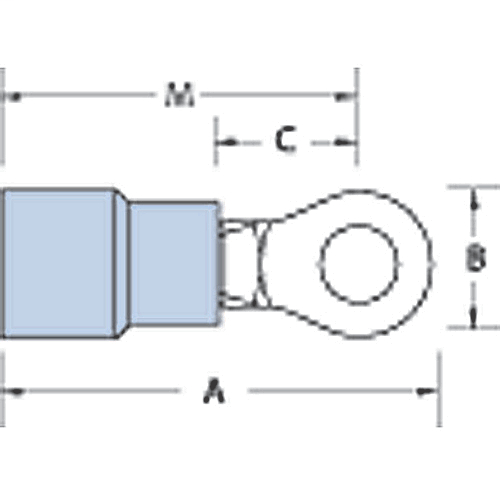

Vinyl-Insulated Ring Terminal, Length 1.16 Inches, Width .50 Inches, Maximum Insulation .210, Bolt Hole 1/4 Inch, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated

Technical Information

Barrel Type
Brazed Seam
Conductor Size
12-10 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
PVC
Insulation Type
Insulated Vinyl
Material
Copper
Stud Size
1/4 in
Temperature Rating
105 degrees C
Terminal Type
RC
Type
Short Sleeve
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210800462
Color
Yellow
Finish
Tin Plated
GTiN
05414363136224
Product UPC
78621080046
Used With
Round Conductors

Dimensions

Thickness
.04 in
Certifications
  • CSA
  • UL
Features
  • These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wire's flex point. Brazed seam barrel is serrated to obtain high pull-out value.
