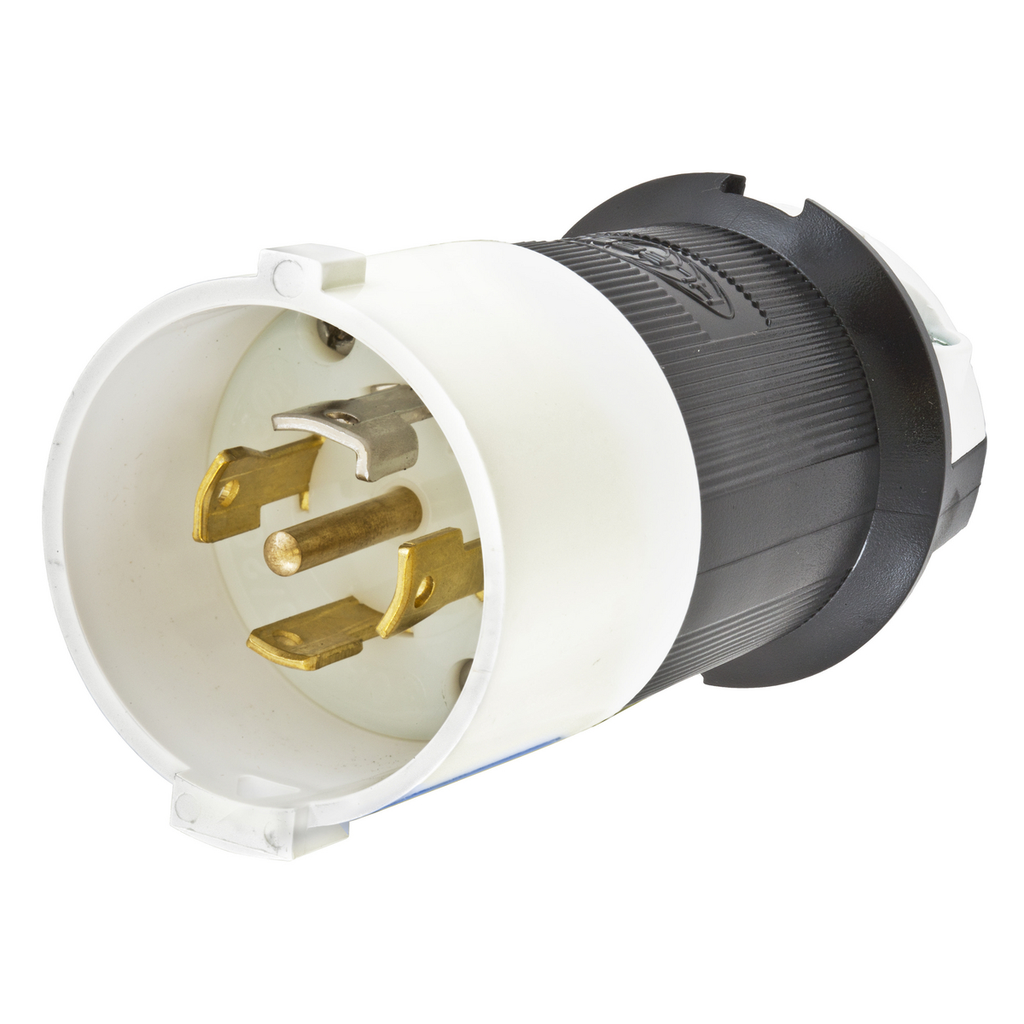

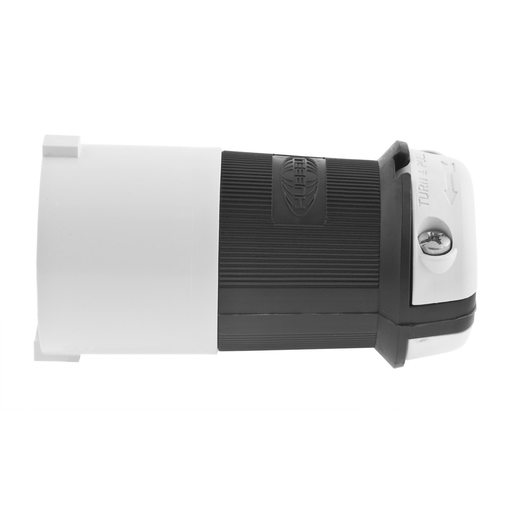

HWDK HBL2811S LKG S/SHRD PLUG, 30A

Manufacturer: Hubbell / Kellems | Catalog # HBL2811S | North Coast Part # 142323
$156.53/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®,Safety-Shroud® Plug, 30A, 3 Phase Y 120/208V AC, 4 Pole, 5 Wire Grounding, NEMA L21-30P, Black and white nylon body, white PBT shroud

Technical Information

Amperage
30 Amp
Applications
Power Connection
Conductor Size
10-8 AWG
Cord Type
Portable
Current
30 Amp
Horsepower
3 hp
Material
Nylon
Mounting Type
Cord
NEMA
L21-30P
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Screw Material
#10-32 Brass
Size
2.33 in x 2.33 in x 4.21 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Terminal Screws
Type
Standard Sized, Shrouded
Voltage
120/208 Volt
Wattage
6240 Watt
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Safety-Shroud®

General Product Info

12-Digit UPC
783585235103
Color
Black,White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585235103
Housing Material
Black Nylon
Product UPC
78358523510
Weight
0.45 lb

Dimensions

Height
4.21 Inch
Length
2.33 Inch
Width
2.33 in

Certifications and Compliance

Country of Origin
USA
Features
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Superior cord grip design for flat cable protects terminations from excess strain
  • Clear, funnel shaped wire entry for ease of termination
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Standard Product
