Thomas & Betts RA18-6F Nylon-Insulated Fork Terminal - #22-16, #6bolt

Manufacturer: Thomas & Betts | Catalog # RA18-6F | North Coast Part # 14366
$247.56 /c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
200 available

For Pick Up

at Auburn Closes 4:00PM PT
200 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not in local stock *
Check another branch
Specification Sheet

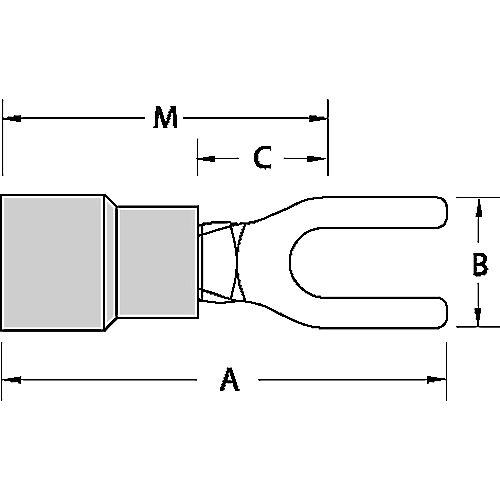

Nylon Insulated Fork Terminal, Length .83 Inches, Width .25 Inches, Maximum Insulation .136, Bolt Hole #6, Wire Range #22-#16 AWG, Color Red, Copper, Tin Plated

Technical Information

Conductor Size
22-16 AWG
Flamability Class
Rated V-2 Per UL94
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Stud Size
#6
Temperature Rating
105 degrees C
Terminal Type
RA
Type
Short Sleeve
Voltage
600 Volt
Wire Size
22-16 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210803869
Color
Red
Finish
Electro Tin Plated
GTiN
05414363934219
Product UPC
78621080386

Dimensions

Height
3 Inch
Thickness
.03 in
Width
1.1 in
Certifications
  • CSA
  • UL
Features
  • Inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep. Nylon jacket is color-coded.
