3M 7100123110 3M™ Scotchcast™ Inlin

Manufacturer: 3M | Catalog # 7100123110 | North Coast Part # 1443844
$135.76/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 3:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page MDM Safety Data Sheet

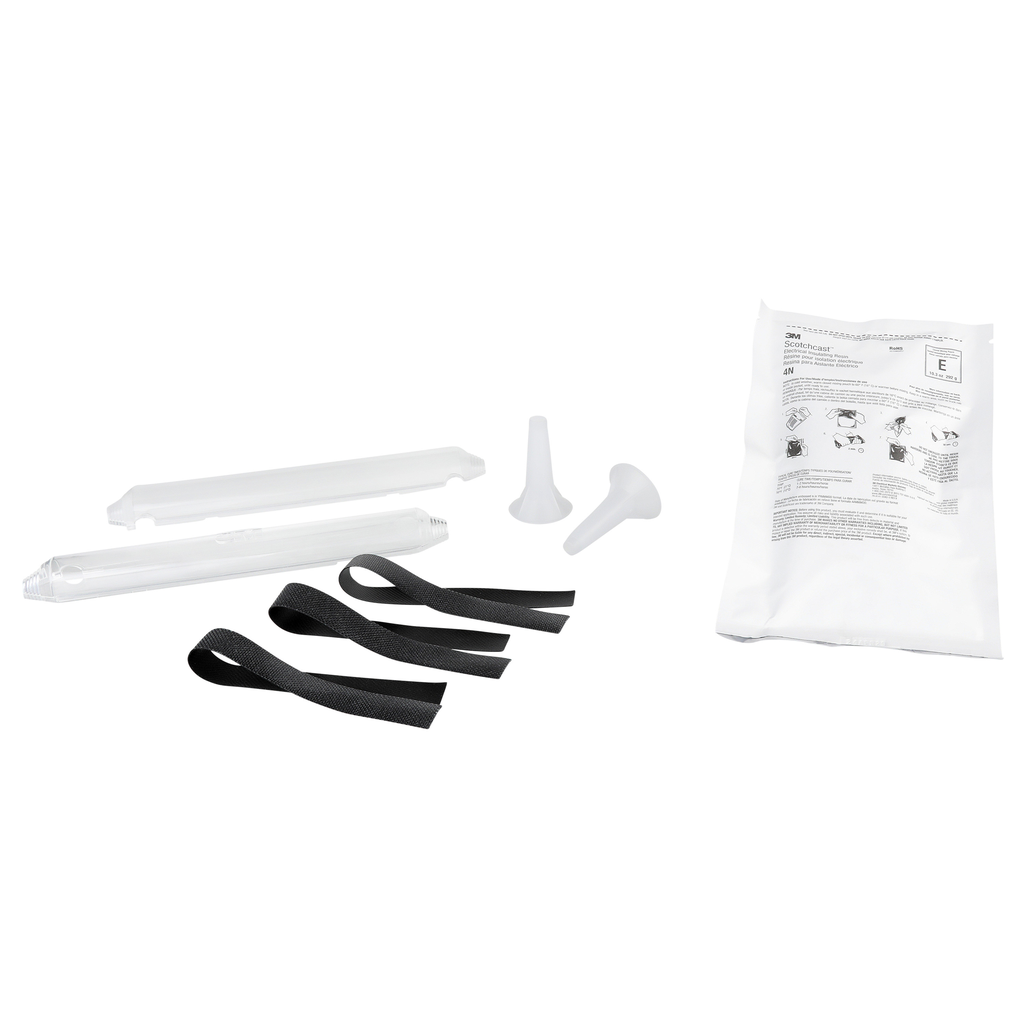

3M™ Scotchcast™ Inline Resin Power Cable Splice Kit is designed to insulate and seal 5kV rated unshielded, single-conductor cables and 1 kV rated multiple conductor cables. It is suitable for use in weather-exposed or direct burial locations.

Technical Information

Applications
Electrical Insulation And Mechanical Protection,Sealing
Conductor Size
1-000 AWG
Material
Epoxy
Splice Type
Inline
Type
Inline Resin
Voltage
5 kV

Manufacturer Information

Brand
Scotchcast
Sub Brand
Scotchcast

General Product Info

12-Digit UPC
051128613429
Color
Black
GTiN
00051128613429
Product Series
82-A Series
Product Type
Splice
Product UPC
05112861342

Certifications and Compliance

Country of Origin
USA
Features
  • INSULATES AND SEALS: Unshielded, single conductor cables and multiple conductor cables
  • ENGINEERED VERSATILITY: Make inline splices on 5 kV cables and multiple conductor cables through 1 kV
  • SPLICE AND RE-JACKET: Designed to splice or re-jacket non-shielded portable power cables and portable cords
  • DESIGNED FOR THE ELEMENTS: Designed for weather-exposed or direct burial locations
  • FAST AND EASY: Permanent watertight protection for submerged applications up to 600 V and 90C
  • QUICK CURE TIME: Cures in about 1-2 hours (pending temperature/conditions)
